TECHNICAL SPECIFICATIONS SPECS - NON DUCT |
|
Power Supply | 208~230V/1Ph/60Hz |
SEER2 | 23.40 |
Heat Pump | Yes |
Cooling BTU | 48000 |
Heating at 47°F BTU | 48000 |
Heating at 5°F BTU | 27000 |
Refrigerant Gas (Type/Charged) | R410A/162 |
Outdoor Ambient Cooling (°F) | -13~122 |
Outdoor Ambient Heating (°F) | -13~86 |
Connection Wiring | 16AWG*4 Stranded, Unshielded |
AHRI Certificate Number | 133407252502393423 |
Outdoor SKU |
DXFM-4823-5Z |
SKU:DXFM-4823-5Z
Multi Zone Outdoor 48,000 BTU in capacity, up to 23.40 SEER2 208-230V/1Ph/60Hz
Multi Zone Outdoor 48,000 BTU in capacity, up to 23.40 SEER2 208-230V/1Ph/60Hz

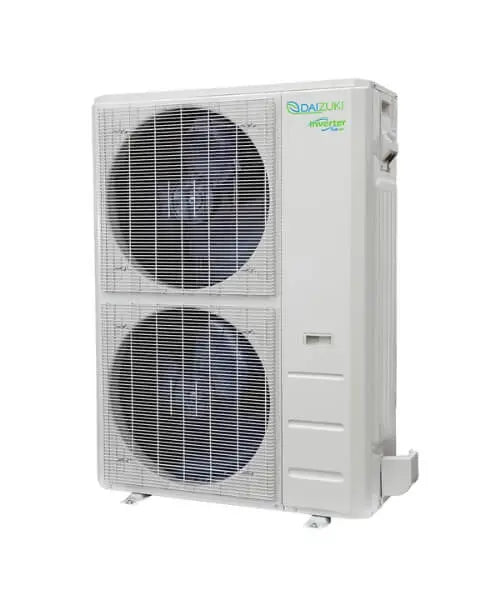

Daizuki® Multi Zone Outdoor 48,000 BTU in capacity
This Flex-Mount Multi Zone Outdoor Model from the DXFM Series features top of the line Full DC Inverter and Heat-Pump technology. It has 48,000 BTU in capacity, up to 23.40 SEER2 rating for high electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.

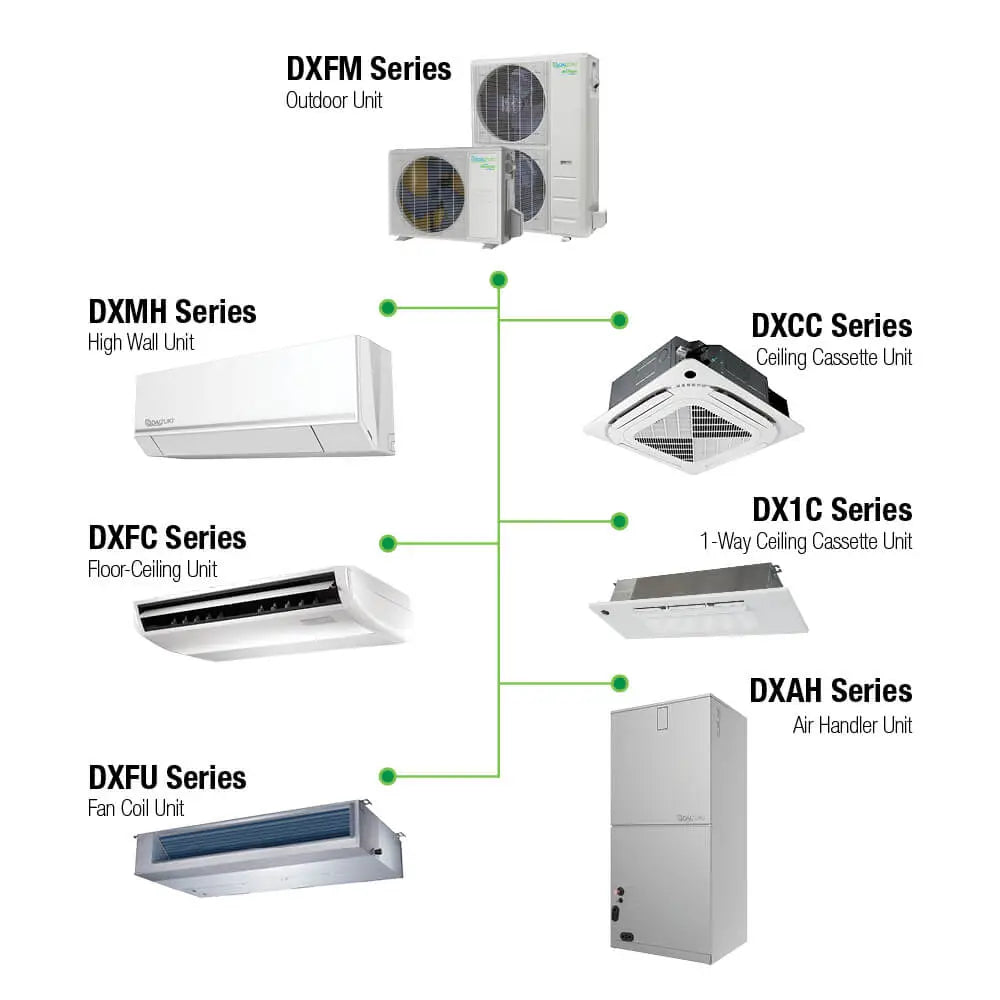

Our multi zone line gives you over 246 possible combinations! Connect up to 5 zones with six different indoor systems from our high wall mounts, 4-way and 1-way cassettes, floor-ceiling units, fan coils, and air handlers. The power of flexible, customizable comfort is in your hands with Daizuki.
This Flex-Mount Multi Zone Outdoor Model from the DXFM Series features top of the line Full DC Inverter and Heat-Pump technology. It has 48,000 BTU in capacity, up to 23.40 SEER2 rating for high electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.
To assure you of the highest quality standards, this product is AHRI Approved and certified with the ETL Mark. Plus, thanks to its high energy efficiency, it is Energy Star certified. Consult your local laws for energy efficiency rebates and subsidies.
This Flex-Mount Multi Zone Outdoor Model Features:
- Diamond-Edged and T-Shaped Design. The Diamond-edged Casing, Archimedes’ screw-shaped air outlet and T-Shaped top cover together keep rain or sand away from the unit, ensuring stable operation of the interior.
- Water and Fireproof Sealed E-box. The E-box is sealed with water & fireproof metal plate material and double-slot-tight buckles which serve as protection against rain or humidity and precaution for any possible leakage.
- Smart Inverter. Can save energy while reaching the set temperature faster thanks to its advanced DC Inverter and DC Fan Motor technology.
- Smart Troubleshooting. There is no time for downtime with Self-Diagnostic Programming and Refrigerant Leak Detection Sensor.
- Winter Proof. This condenser can has a Low Outdoor Ambient Temperature Operation of -13ºF, has Intelligent Auto-Defrost Technology, and has a Built In Base Pan Heater.
- Clean Effortlessly. Its intuitive cleaning design makes it simpler to take apart and reassemble. Filter, vanes, plate, and flap easily disassemble and fit back together for easy manual cleaning.
- GoldFin Technology. Provides coil protection against corrosion in environments where traditional coatings fail.
DIMENSIONS |
|||||||||||||||||||||||||||||
OUTDOOR UNIT | |||||||||||||||||||||||||||||
Net Dimension (W*H*D) | 37.48 x 16.34 x 52.48 in
952 x 415 x 1332 mm |
||||||||||||||||||||||||||||
Packing Dimension (W*H*D) | 43.11 x 19.49 x 58.27 in
1095 x 495 x 1480 mm |
||||||||||||||||||||||||||||
WEIGHT | |||||||||||||||||||||||||||||
OUTDOOR UNIT | |||||||||||||||||||||||||||||
Net | 225.53 lb
102 kg |
||||||||||||||||||||||||||||
Packing
|
256.62 lb
116 kg |
FIVE ZONE CONDENSER DXFM-4823-5Z
Accessories that fit(Extra price)
Line Set Cover Kit (Click here)
Brackets (Click here)
Warranty
Thank you for choosing DAIZUKI to conditioning your room. We want to let you know that you installed a high technology equipment made under strictly quality control standards, that’s why DAIZUKI offer a warranty of 10 years for the Compressor and 10 years in Parts.
