TECHNICAL SPECIFICATIONS SPECS - NON DUCT |
|
Power Supply | 208~230V/1Ph/60Hz |
SEER2 | 23.90 |
Heat Pump | Yes |
Cooling BTU | 36000 |
Heating at 47°F BTU | 37000 |
Heating at 5°F BTU | 23959 |
Refrigerant Gas (Type/Charged) | R410A/134.04 |
Outdoor Ambient Cooling (°F) | -13~122 |
Outdoor Ambient Heating (°F) | -13~86 |
Connection Wiring | 16AWG*4 Stranded, Unshielded |
AHRI Certificate Number | 133407245976835175 |
Outdoor SKU | DXFM-3623-4Z |
SKU:DXFM-3623-4Z
Multi Zone Outdoor 36,000 BTU in capacity, up to 23.90 SEER2 208-230V/1Ph/60Hz
Multi Zone Outdoor 36,000 BTU in capacity, up to 23.90 SEER2 208-230V/1Ph/60Hz

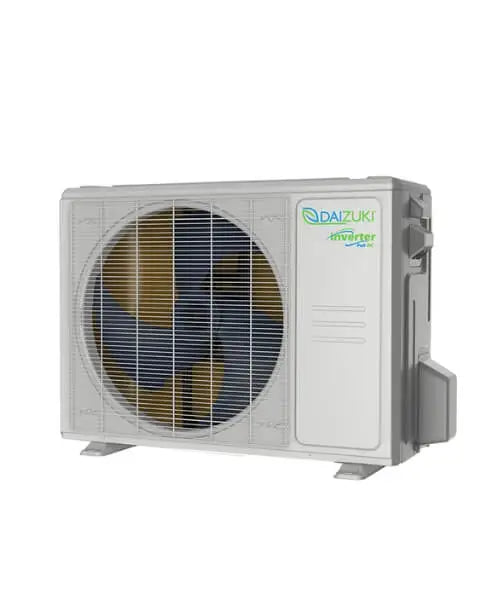

Daizuki® Multi Zone Outdoor 36,000 BTU in capacity

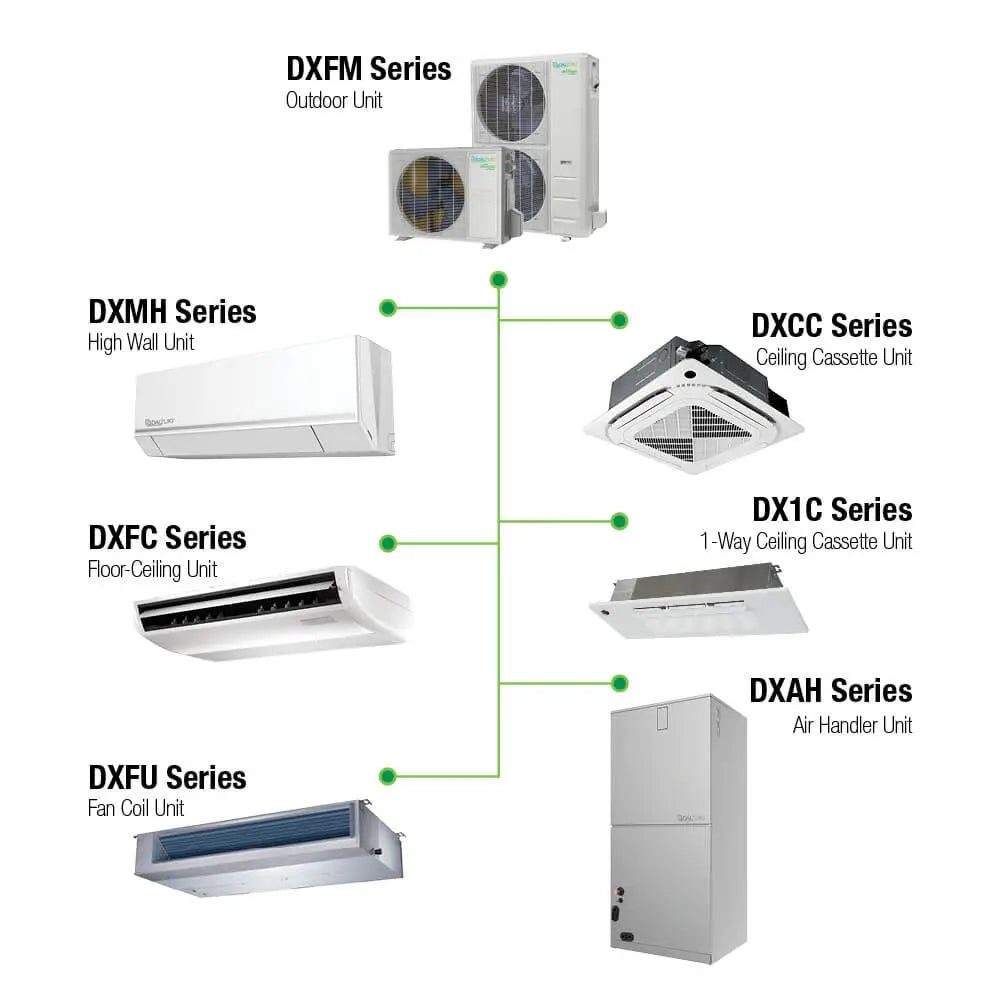

This Flex-Mount Multi Zone Outdoor Model from the DXFM Series features top of the line Full DC Inverter and Heat-Pump technology. It has 36,000 BTU in capacity, up to 23.90 SEER2 rating for high electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.
To assure you of the highest quality standards, this product is AHRI Approved and certified with the ETL Mark. Plus, thanks to its high energy efficiency, it is Energy Star certified. Consult your local laws for energy efficiency rebates and subsidies.
This Flex-Mount Multi Zone Outdoor Model Features:
- Diamond-Edged and T-Shaped Design. The Diamond-edged Casing, Archimedes’ screw-shaped air outlet and T-Shaped top cover together keep rain or sand away from the unit, ensuring stable operation of the interior.
- Water and Fireproof Sealed E-box. The E-box is sealed with water & fireproof metal plate material and double-slot-tight buckles which serve as protection against rain or humidity and precaution for any possible leakage.
- Smart Inverter. Can save energy while reaching the set temperature faster thanks to its advanced DC Inverter and DC Fan Motor technology.
- Smart Troubleshooting. There is no time for downtime with Self-Diagnostic Programming and Refrigerant Leak Detection Sensor.
- Winter Proof. This condenser can has a Low Outdoor Ambient Temperature Operation of -13ºF, has Intelligent Auto-Defrost Technology, and has a Built In Base Pan Heater.
- Clean Effortlessly. Its intuitive cleaning design makes it simpler to take apart and reassemble. Filter, vanes, plate, and flap easily disassemble and fit back together for easy manual cleaning.
- GoldFin Technology. Provides coil protection against corrosion in environments where traditional coatings fail.
TECHNICAL SPECIFICATIONS SPECS - DUCTED |
|
Power Supply | 208~230V/1Ph/60Hz |
SEER2 | 20.00 |
Heat Pump | Yes |
Cooling BTU | 36000 |
Heating at 47°F BTU | 37000 |
Heating at 5°F BTU | 24000 |
Refrigerant Gas (Type/Charged) | R410A/134.04 |
Outdoor Ambient Cooling (°F) | -13~122 |
Outdoor Ambient Heating (°F) | -13~86 |
Connection Wiring | 16AWG*4 Stranded, Unshielded |
AHRI Certificate Number | 133407251665181574 |
Outdoor SKU | DXFM-3623-4Z |
Accessories that fit(Extra price)
|
|
OUTDOOR UNIT | |
Net Dimension (W*H*D) | 37.24 x 16.14 x 31.89 in
946 x 410 x 210 mm |
Packing Dimension (W*H*D) | 42.91 x 19.69 x 34.84 in
1090 x 500 x 885 mm |
WEIGHT | |
OUTDOOR UNIT | |
Net | 169.09 lb
77 kg |
Packing | 181.44 lb
82 kg |
