The Cooling Corner LLC

SKU:DXFM-2723-3Z

Multi Zone Outdoor 28,000 BTU in capacity, up to 24.60 SEER2 208-230V/1Ph/60Hz

Multi Zone Outdoor 28,000 BTU in capacity, up to 24.60 SEER2 208-230V/1Ph/60Hz

Regular price $1,215.00 USD
Regular price Sale price $1,215.00 USD
Sale Sold out
Shipping calculated at checkout.

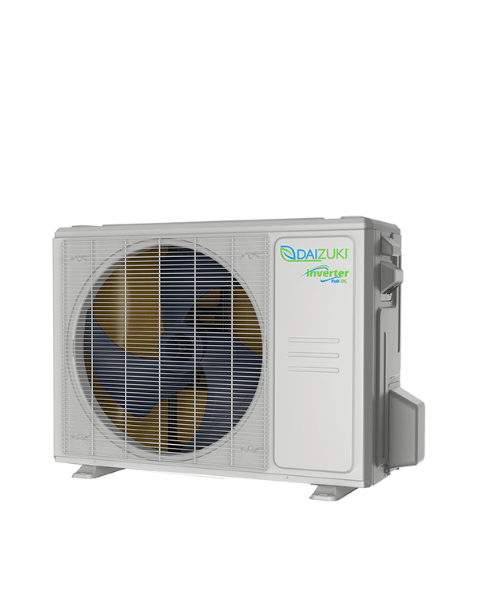

Daizuki® Multi Zone Outdoor 28,000 BTU in capacity

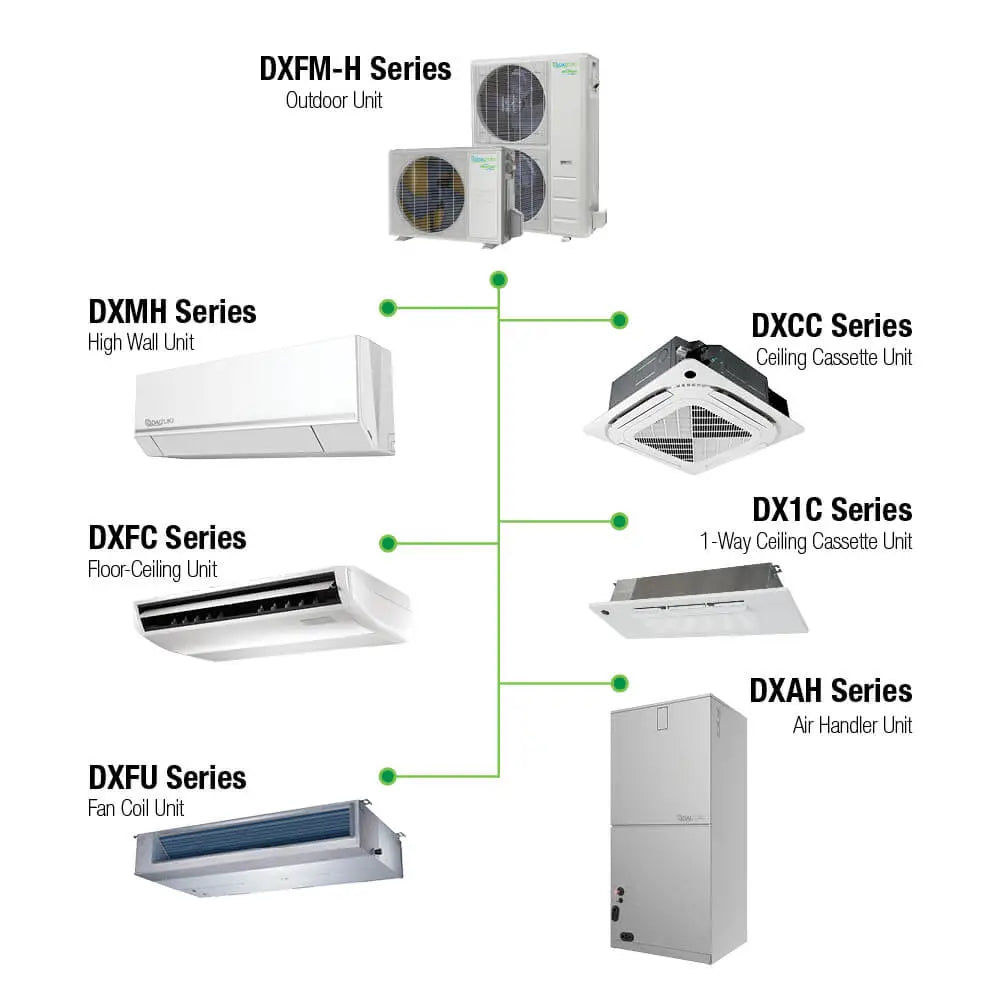

Our multi zone line gives you over 246 possible combinations! Connect up to 5 zones with six different indoor systems from our high wall mounts, 4-way and 1-way cassettes, floor-ceiling units, fan coils, and air handlers. The power of flexible, customizable comfort is in your hands with Daizuki.

This Flex-Mount Multi Zone Outdoor Model from the DXFM Series features top of the line Full DC Inverter and Heat-Pump technology. It has 28,000 BTU in capacity, up to 24.60 SEER2 rating for high electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.

To assure you of the highest quality standards, this product is AHRI Approved and certified with the ETL Mark. Plus, thanks to its high energy efficiency, it is Energy Star certified. Consult your local laws for energy efficiency rebates and subsidies.

This Flex-Mount Multi Zone Outdoor Model Features:

  • Diamond-Edged and T-Shaped Design. The Diamond-edged Casing, Archimedes’ screw-shaped air outlet and T-Shaped top cover together keep rain or sand away from the unit, ensuring stable operation of the interior.
  • Water and Fireproof Sealed E-box. The E-box is sealed with water & fireproof metal plate material and double-slot-tight buckles which serve as protection against rain or humidity and precaution for any possible leakage.
  • Smart Inverter. Can save energy while reaching the set temperature faster thanks to its advanced DC Inverter and DC Fan Motor technology.
  • Smart Troubleshooting. There is no time for downtime with Self-Diagnostic Programming and Refrigerant Leak Detection Sensor.
  • Winter Proof. This condenser can has a Low Outdoor Ambient Temperature Operation of -13ºF, has Intelligent Auto-Defrost Technology, and has a Built In Base Pan Heater.
  • Clean Effortlessly. Its intuitive cleaning design makes it simpler to take apart and reassemble. Filter, vanes, plate, and flap easily disassemble and fit back together for easy manual cleaning.
  • GoldFin Technology. Provides coil protection against corrosion in environments where traditional coatings fail.

TECHNICAL SPECIFICATIONS
Power Supply 208~230V/1Ph/60Hz
SEER2 23
Heat Pump Yes
Cooling BTU 28000
Heating at 47°F BTU 28000
Heating at 5°F BTU 24000
Refrigerant Gas (Type/Charged) R410A/91.7
Outdoor Ambient Cooling (°F) -22~122
Outdoor Ambient Heating (°F) -22~86
Connection Wiring 16AWG*4 Stranded, Unshielded
 –
DIMENSIONS
OUTDOOR UNIT
Net Dimension (W*H*D) 37.24 x 16.14 x 31.89 in

946 x 410 x 210 mm

Packing Dimension (W*H*D) 42.91 x 19.69 x 34.84 in

1090 x 500 x 885 mm

WEIGHT
OUTDOOR UNIT
Net 167.99 lb

76 kg

Packing 179.67 lb

81 kg


COMBINATION TABLET

Accessories that fit(Extra price)
Line Set Cover Kit (Click here)
Brackets (Click here)


Warranty

Thank you for choosing DAIZUKI to conditioning your room. We want to let you know that you installed a high technology equipment made under strictly quality control standards, that’s why DAIZUKI offer a warranty of 10 years for the Compressor and 10 years in Parts.

Warranty Policy:

Clic here:

Product Registration:

Clic here:

View full details
