SKU:FV- ACB-14A

Outdoor Mini Split Ground Bracket for Ductless Heat Pump or Cooling Only Units 9000-36000 Btu Up to 440lbs

Outdoor Mini Split Ground Bracket for Ductless Heat Pump or Cooling Only Units 9000-36000 Btu Up to 440lbs

Regular price $65.00 USD
Regular price Sale price $65.00 USD
Sale Sold out
Shipping calculated at checkout.
MODELS

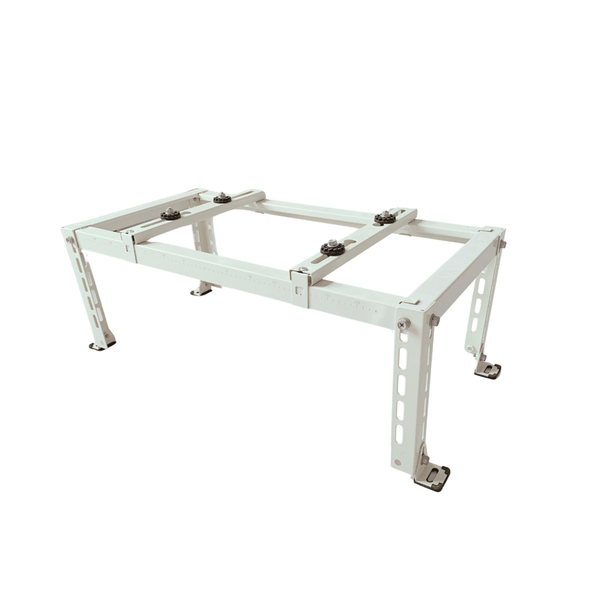

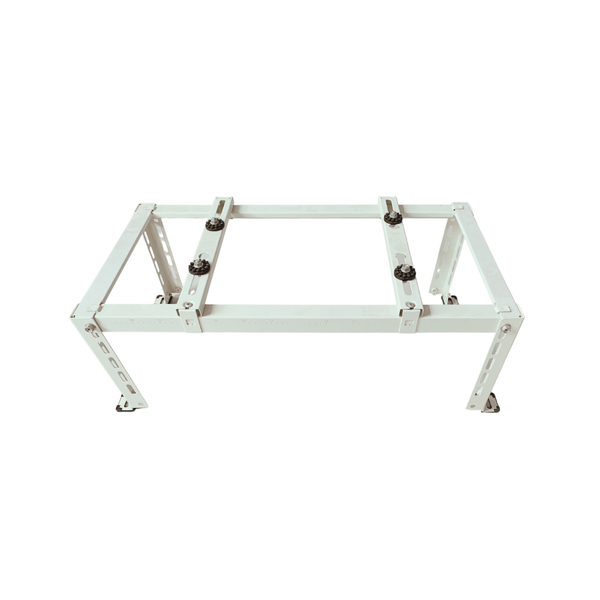

Ground Bracket for Mini Split Air Conditioner, 9000-36000 Btu Condenser

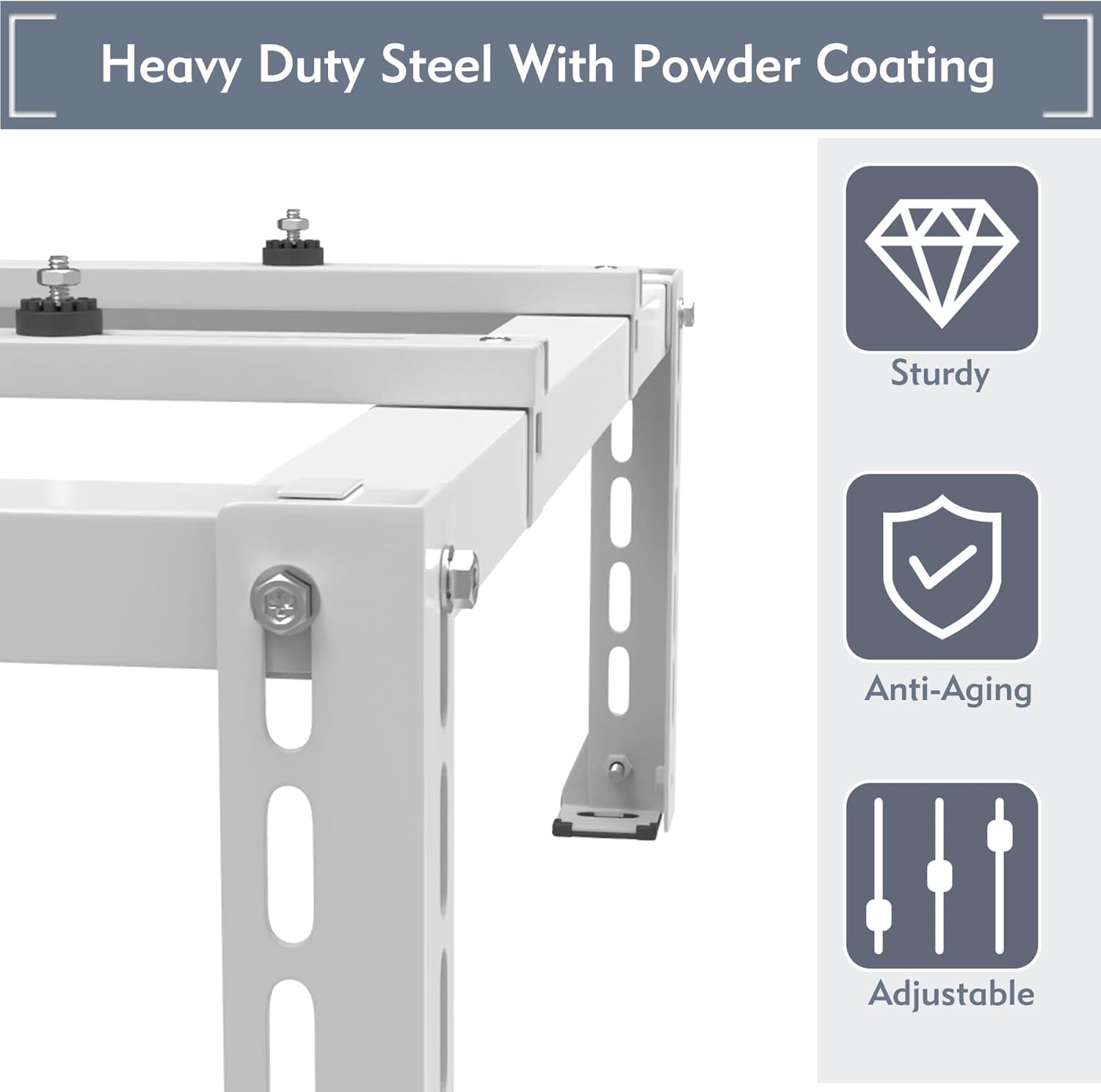

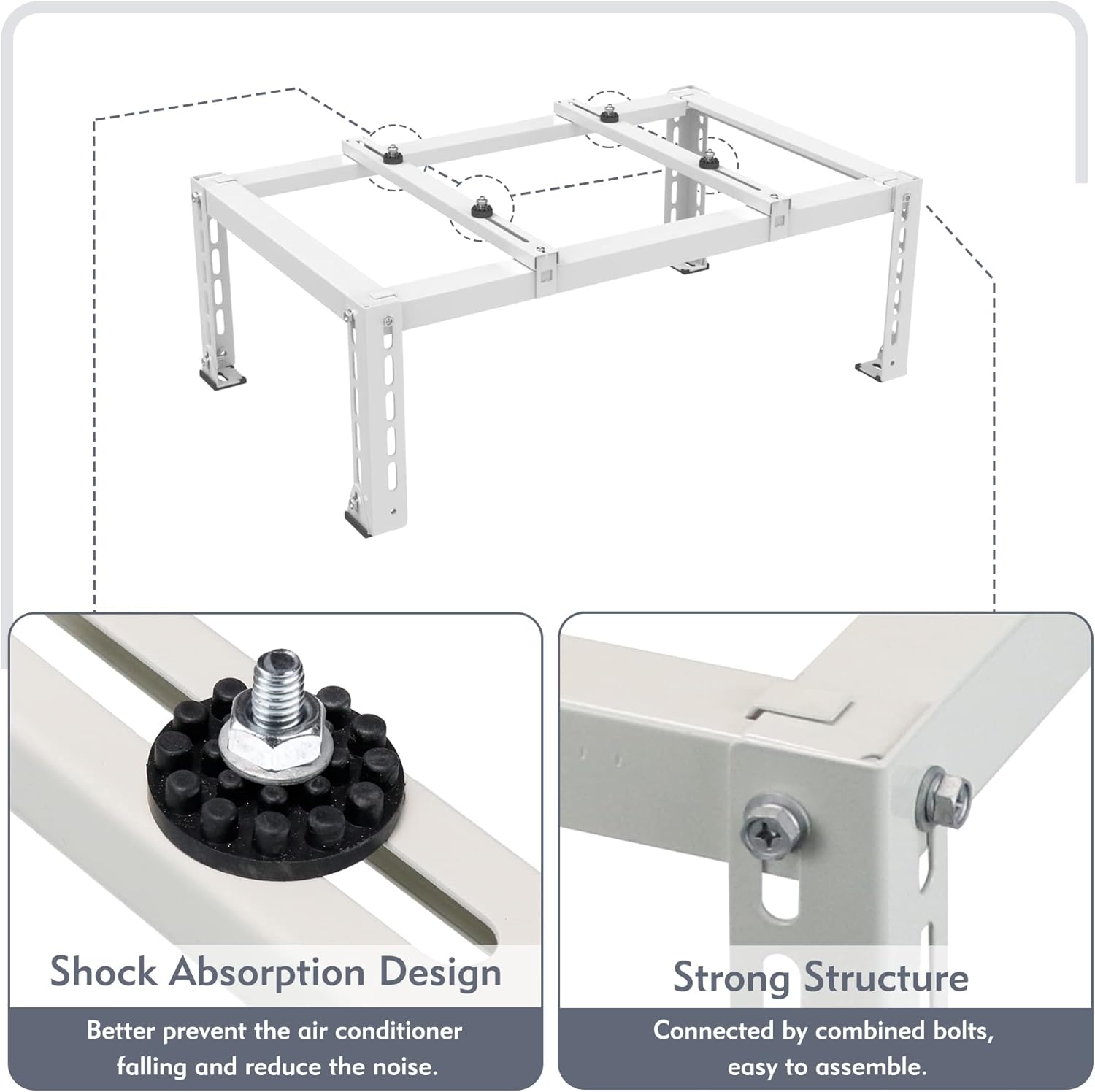

Folding, heavy gauge steel condenser bracket kit, for Ground Bracket installations. Use on all Models of Mini Split Condensing Units. Heavy gauge galvanized steel structure with electrostatic epoxy paint. Packed with all required hardware. Heavy Duty Steel Construction. 4 Rubber vibration absorbers also included. Multiple sizes to choose from. Pick the bracket that fits the BTU output of your machine. Raises the condensing unit above floor for protection from dirt, snow, debris, floods and other perils.

Features:

  • Material: Zinc-coated steel.
  • Surface Treatment: Poxy resins in polyester powder coating for outdoor use.
  • Color: Light cream
  • Suitable: Suitable for all kind of AC outdoor unit

Part No. FV- ACB-14A

  • Product dimensions: L800 x W410 x H280 / L-32" x W-16" x H-11"
  • Thickness (mm) / Inches: 2 / 0.08"
  • Net Weight: 10.75 lbs.
  • Gross weight: 12 lbs.
  • Loading capacity: 440 lbs.
  • Packaging dimensions: 39” x 3” x 3”
  • Installation tooling included: Yes.

Part No. FV-ACB-14B

  • Product dimensions: L900 x W450 x H280 / L-35" x W-18" x H-11"
  • Thickness (mm) / Inches: 2 / 0.08"
  • Net Weight: 14.55 lbs.
  • Gross weight: 15.4 lbs.
  • Loading capacity: 440 lbs.
  • Packaging dimensions: 37” x 5” x 2”
  • Installation tooling included: Yes.
