SKU:DXFU12E426-21
Fan Coil Unit for Minisplit 12000 BTU High SEER2 Rating 208-230V/1Ph/60Hz
Fan Coil Unit for Minisplit 12000 BTU High SEER2 Rating 208-230V/1Ph/60Hz

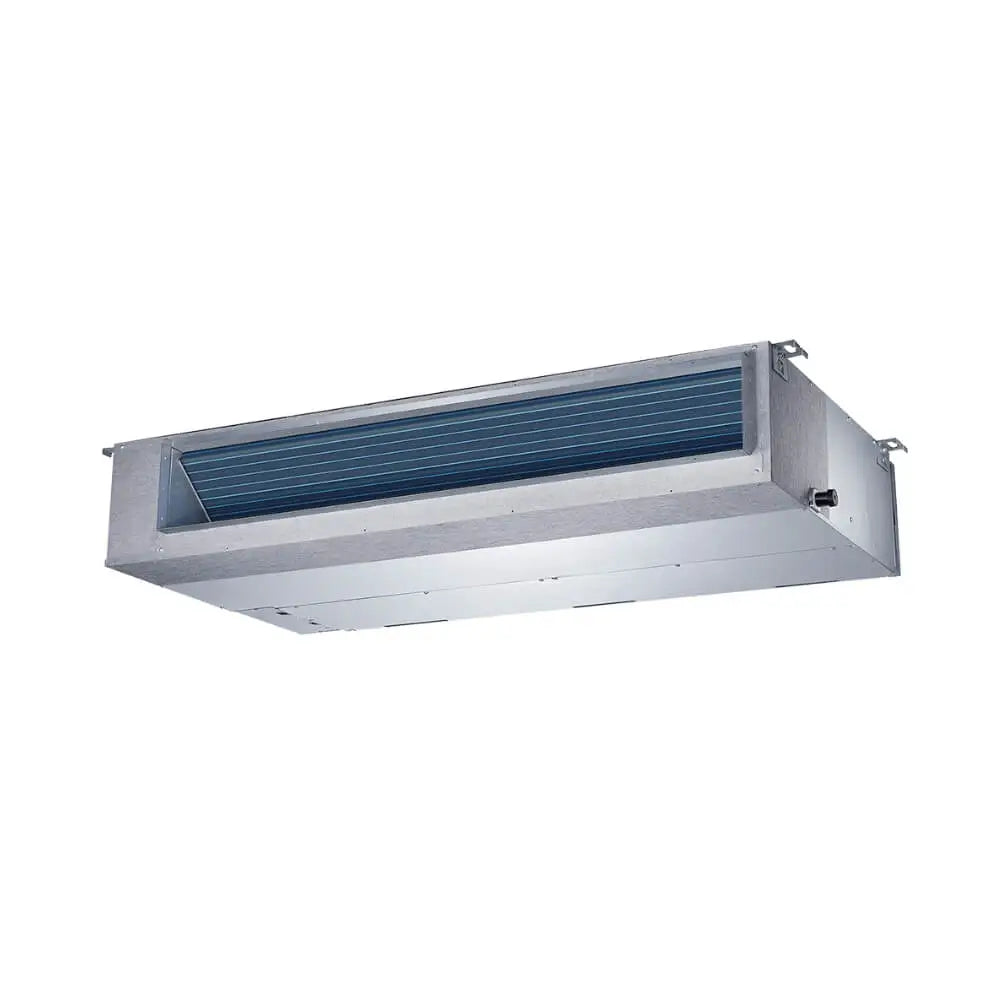

Daizuki® Fan Coil Unit 12000 BTU in Capacity
This Multi Zone Indoor Fan Coil from the DXFU Series features top of the line Full DC Inverter and Heat-Pump technology. It has 12,000 BTU in capacity, high SEER2 rating for high electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.
To assure you of the highest quality standards, this product is AHRI Approved and certified with the ETL Mark. Plus, thanks to its high energy efficiency, it is Energy Star certified. Consult your local laws for energy efficiency rebates and subsidies.
This Multi Zone Indoor Fan Coil Model Features:
- Compact and slim design, with built in drain pump.
- Flexible Installation. Allows for either horizontal or vertical installation, and rear or bottom flow return.
- Clean Effortlessly. Its intuitive cleaning design makes it simpler to take apart and reassemble for easy manual cleaning.
- GoldFin Technology. Provides coil protection against corrosion in environments where traditional coatings fail.
- Operating features include Auto Restart.
TECHNICAL SPECIFICATIONS | |
Power Supply | 208~230V/1Ph/60Hz |
Heat Pump | Yes |
Cooling BTU | 12000 |
Heating at 47°F BTU | 12000 |
Thermostat Type – Wireless Remote Controller | Optional |
Thermostat Type – Wifi | Optional |
Temperature Operation Range – Cooling (°F) | 60~90 |
Temperature Operation Range – Heating (°F) | 32~86 |
Ambient Temperature – Cooling (°F) | -13~122 |
Ambient Temperature – Heating (°F) | -13~75 |
Outdoor SKU | DXFU12E426-21 |
DIMENSIONS | |
Net Dimension (W*H*D) | 27.56 x 17.72 x 7.87 in
700 x 450 x 200 mm |
Packing Dimension (W*H*D) | 33.86 x 21.26 x 10.83 in
860 x 540 x 275 mm |
WEIGHT | |
Net | 37.5 lb
17 kg |
Packing | 48.3 lb
22 kg |
Warranty
Thank you for choosing DAIZUKI to conditioning your room. We want to let you know that you installed a high technology equipment made under strictly quality control standards, that’s why DAIZUKI offer a warranty of 10 years for the Compressor and 10 years in Parts.
