Everwell Capacitor HVAC 370V | Round Run & Dual Run | A/C Compresor Ventilador

Everwell Capacitor HVAC 370V | Round Run & Dual Run | A/C Compresor Ventilador

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

High-Quality HVAC Motor Capacitors for Fan and Compressor Applications

Restore and maintain your air conditioning and HVAC system performance with trusted Everwell capacitors. Choose from single run or dual run models, all designed for reliability, durability, and easy installation.

Available Models:

Single Run (2-terminal):
Perfect for one motor – fan or compressor

  • 3µF, 5µF, 7.5µF, 10µF, 12.5µF, 15µF, 17.5µF, 20µF, 25µF, 30µF, 35µF, 40µF, 45µF, 50µF, 55µF, 60µF, 70µF, 80µF

Dual Run (3-terminal – C/FAN/HERM):
Designed to power two motors – compressor + fan

  • 25+3 µF to 80+5 µF

Common Applications:

  • Air conditioner condenser fan motors
  • AC compressor units
  • Blower motors
  • HVAC fan coils
  • Residential and light commercial systems

Features:

  • All models are 370V AC rated
  • No induction winding structure of metallic polypropylene membrane
  • Credible insulation performance, super electric performance with ability of self-heating and safety explosion proof equipment
  • Excellent heat dispersion, small volume, wide range of capacity, low loss stable capacitance
  • With stand impact current, strong overload performance and long live span
  • Suitable for starting and operating 50Hz or 60Hz AC single phase electro-motor
  • UL Listed – E477014

Main Technical Parameters:

  • Working Temperature: -13 to 158ºF (-25 to 70ºC)
  • Capacitance Tolerance: J:±5% K:±10%.
  • Non-PCB capacitor
  • Expected life 60,000 hours


ROUND RUN CAPACITOR 370V

Part No. Capacitance Terminals Dimensions(mm) Master Box
Rating (uF) @Voltage Capacitor Box
3×370 3 370 2×4 40×60 42×75 50
5×370 5 370 2×4 40×60 42×75 50
7.5×370 7.5 370 2×4 40×60 42×75 50
10×370 10 370 2×4 40×60 42×75 50
12.5×370 12.5 370 2×4 40×70 42×85 50
15×370 15 370 2×4 40×70 42×85 50
17.5×370 17.5 370 2×4 40×70 42×85 50
20×370 20 370 2×4 40×90 42×105 50
25×370 25 370 2×4 40×90 42×105 50
30×370 30 370 2×4 50×100 52×115 50
35×370 35 370 2×4 50×100 52×115 50
40×370 40 370 2×4 50×100 52×115 50
45×370 45 370 2×4 50×100 52×115 50
50×370 60 370 2×4 50×100 52×115 50
55×370 55 370 2×4 50×100 52×140 50
60×370 60 370 2×4 50×100 52×140 50
70×370 70 370 2×4 50×100 52×140 50
80×370 80 370 2×4 50×100 52×140

50

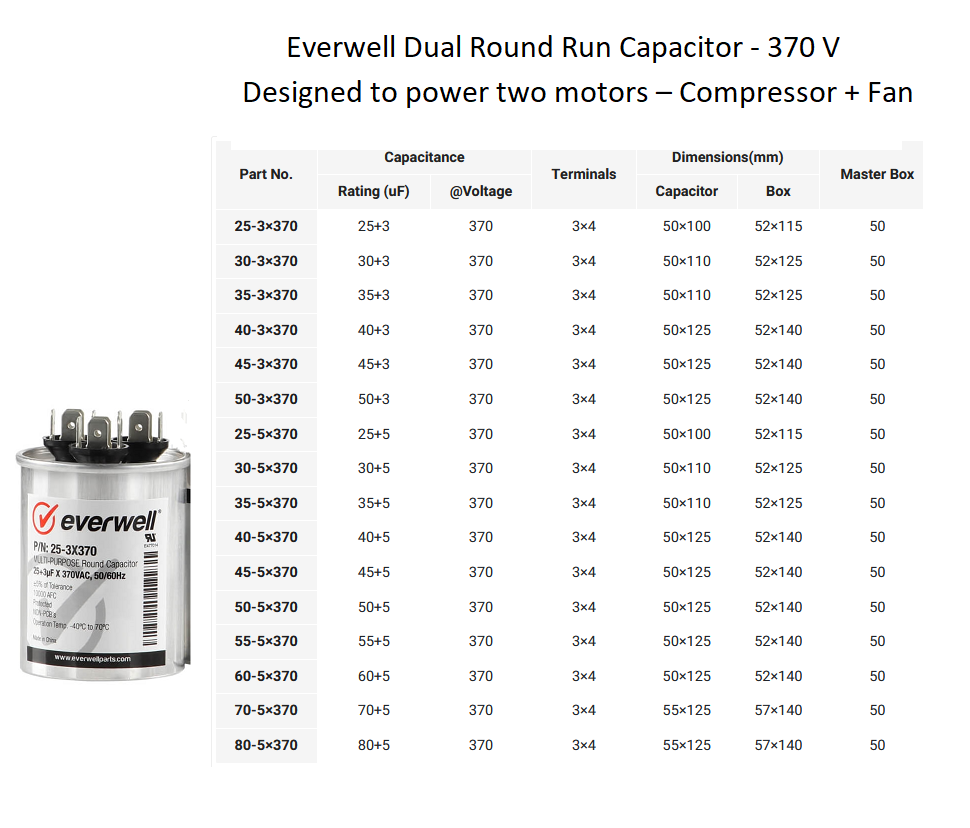

DUAL ROUND RUN CAPACITOR 370V

Part No. Capacitance Terminals Dimensions(mm) Master Box
Rating (uF) @Voltage Capacitor Box
25-3×370 25+3 370 3×4 50×100 52×115 50
30-3×370 30+3 370 3×4 50×110 52×125 50
35-3×370 35+3 370 3×4 50×110 52×125 50
40-3×370 40+3 370 3×4 50×125 52×140 50
45-3×370 45+3 370 3×4 50×125 52×140 50
50-3×370 50+3 370 3×4 50×125 52×140 50
25-5×370 25+5 370 3×4 50×100 52×115 50
30-5×370 30+5 370 3×4 50×110 52×125 50
35-5×370 35+5 370 3×4 50×110 52×125 50
40-5×370 40+5 370 3×4 50×125 52×140 50
45-5×370 45+5 370 3×4 50×125 52×140 50
50-5×370 50+5 370 3×4 50×125 52×140 50
55-5×370 55+5 370 3×4 50×125 52×140 50
60-5×370 60+5 370 3×4 50×125 52×140 50
70-5×370 70+5 370 3×4 55×125 57×140 50
80-5×370 80+5 370 3×4 55×125 57×140 50
