Everwell® Suction Line Filter Drier

SSFD Series suction line filter has a large shell diameter with optimal design to provide maximum filtration efficiency and effective compressor protection.

Features:

• Having a shortest length allow the installation in narrow areas
• When low pressure drops, its increase the effective filtration with pleated filter design
• Copper at the end of joint to make easeast the welding process
• Two valves for measuring pressure drops
• Filtration precision 40microns
• Painted with corrosion resistant epoxy powder coating, matching the requirement of 500 ours salt spray testing
• Maximun working pressure 510psi (35 bar)

SSFD-283T
Connection Size: 3/8″ ODF
Filter Paper Area (in2): 83

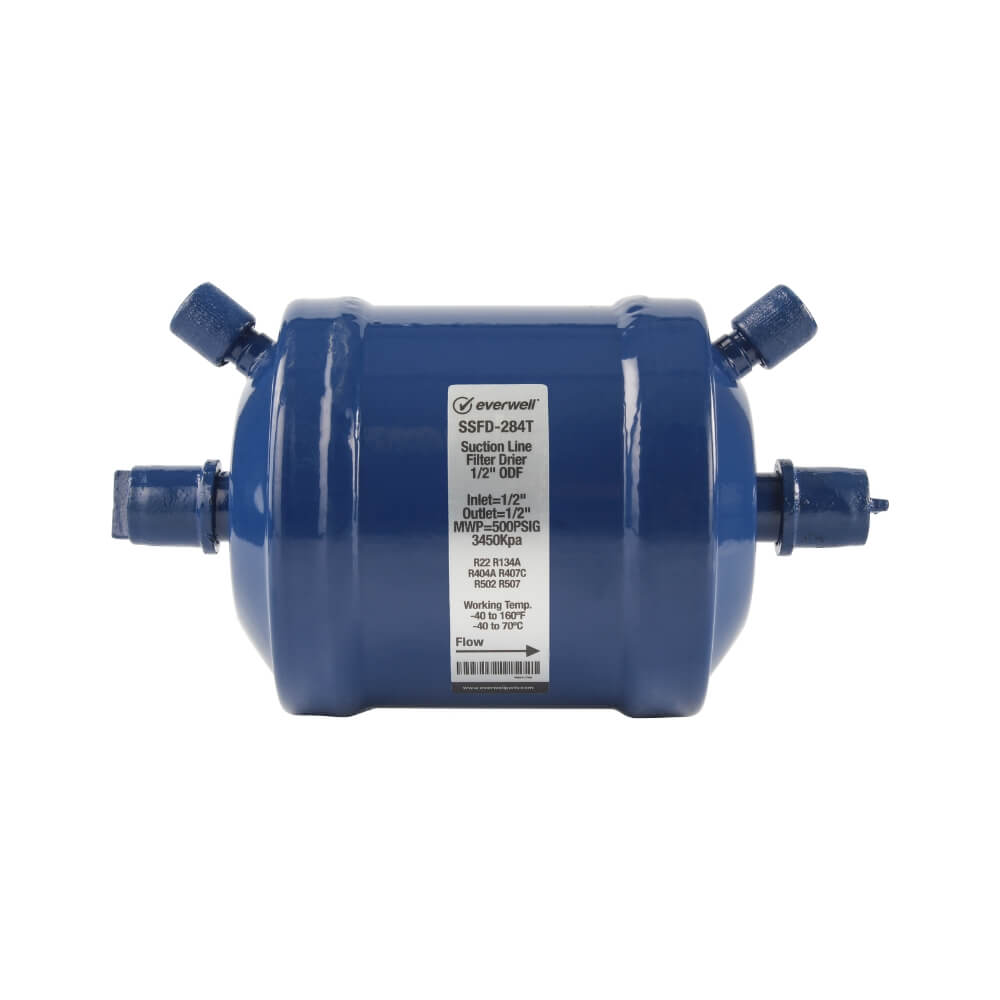

SSFD-284T
Connection Size: 1/2″ ODF
Filter Paper Area (in2): 83

SSFD-285T
Connection Size: 5/8″ ODF
Filter Paper Area (in2): 83
