SKU:CAC2413HA15
Everwell® 2 TON 15 SEER2 Ducted Central Split Air Conditioner Heat Pump System ONLY CONDENSER
Everwell® 2 TON 15 SEER2 Ducted Central Split Air Conditioner Heat Pump System ONLY CONDENSER
2 TON A/C CONDENSING UNIT TOP-DISCHARGE INVERTER (ONLY CONDENSER)
Features
Top-Discharge Condensing Unit Features:
Pre Charged with R410a environmentally friendly refrigerant
3.5 ton capacity
Scroll compressor with quick reactivity, stronger and stable operation
All Copper Coil with Gold Fin: this convenient technology will allow your equipment to have a longer functional life where traditional coil coatings fail; especially in high humidity and salinity environments that promote corrosion
Painted galvanized steel cabinet and base pan
Ultra-quiet operation. Max. 65 decibels

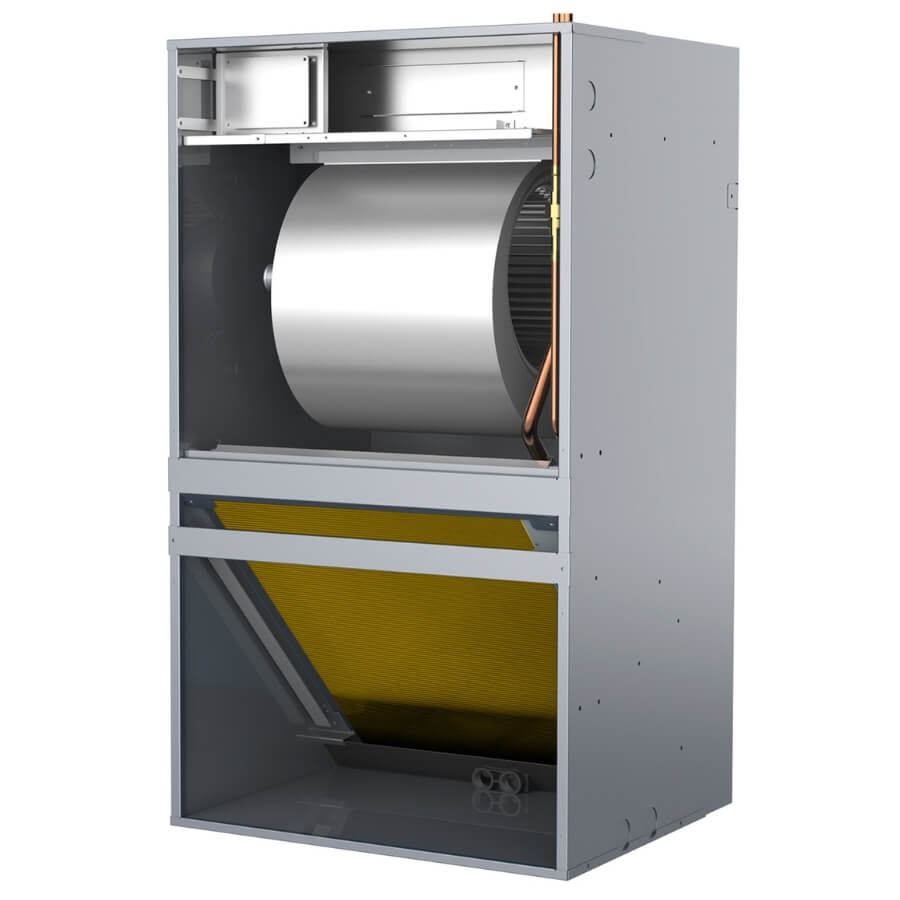

For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:
CAC – AHC Series/FAHC Series | |
Condensing Unit | Air Handler |
CAC2413HA15 | AHC24HA15/FAHC24HA15 |
TECHNICAL SPECIFICATIONS
Power Supply |
208~230V/1Ph/60Hz
|
SEER | 14.3 |
Heat Pump | Yes |
Refrigerant Gas | R410A |
Compressor Brand | LG |
Compressor Type | Scroll |
Installation Kit | No |
WEIGHT
Net | 129 lb
58.5 kg |
DIMENSIONS
Net Dimension (W*H*D) | 23-3/5 x 25 x 23-3/5 in
600 x 633 x 600 mm |
Packing Dimension (W*H*D) | 24-4/5 x 26-1/5 x 24-4/5 in
630 x 665 x 630 mm |
WARRANTY
Ten (10) years on parts and compressor if valid warranty registration
- Register the unit for Limited Warranty within 60 days of installation at everwell-ac.com/warranty
- If the unit is covered under the Limited Warranty and requires replacement parts, the parts will be provided at no cost, although shipping will need to be covered by the client.
