The Cooling Corner LLC

SKU:FAHC36HA15

Everwell® 36000BTU Central Split AC Heat Pump System. ONLY FRONT RETURN AIR HANDLER.

Everwell® 36000BTU Central Split AC Heat Pump System. ONLY FRONT RETURN AIR HANDLER.

Regular price $825.00 USD
Regular price Sale price $825.00 USD
Sale Sold out
Shipping calculated at checkout.

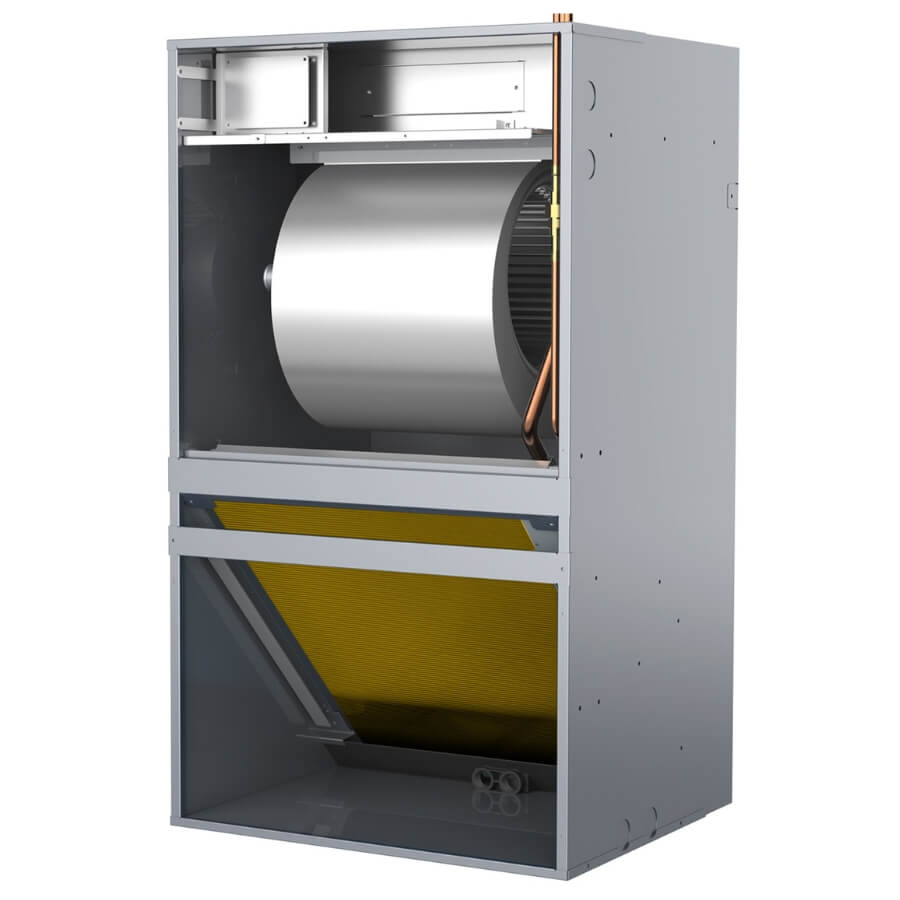

Air Handler (Front Return)

Features:

  • Multi-Speed ECM motor for energy savings
  • Insulated Cabinet – Galvanized steel with paint on all panels. Thermal insulator cover all inside panels to reduce heat and cooling losses and prevent condensed water accumulation
  • Compact wall-mount design enables installation in tight spaces
  • Front or bottom return
  • All copper tube with aluminum fin coil
  • Heat-pump with optional field installed electrical heat kit
  • Thermoplastic drain pan
  • Expansion Devise – Use TXV as expansion device
  • Built in filter rack – Detachable air filter for cleaning or renewal
  • Primary and secondary drain connections to meet FHA requirement

For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:

CAC – FAHC Series
Condensing Unit Air Handler
CAC3613HA15 FAHC36HA15



TECHNICAL SPECIFICATIONS

SKU: FAHC36HA15

BTU: 33,000

Ton: 2.75

Power Supply: 208~230V/1Ph/60Hz

Heat Pump: YES

Refrigerant Gas: R410A

Installation Kit: NO

DIMENSIONS

Net Dimension (W*H*D): 20-3/5 x 36 x 15 in

Packing Dimension (W*H*D): 23-1/5 x 39-2/5 x 17-7/10 in

WEIGHT

Net: 112 lb

Packing: 123 lb

WARRANTY

Ten (10) years on parts and compressor if valid warranty registration

  • Register the unit for Limited Warranty within 60 days of installation at everwell-ac.com/warranty
  • If the unit is covered under the Limited Warranty and requires replacement parts, the parts will be provided at no cost, although shipping will need to be covered by the client.
