The Cooling Corner LLC

SKU:CAC4213HA15-AHC42HA15

Everwell® 3.5 TON 15 SEER2 Ducted Central Split Air Conditioner Heat Pump System

Everwell® 3.5 TON 15 SEER2 Ducted Central Split Air Conditioner Heat Pump System

Regular price $2,554.00 USD
Regular price Sale price $2,554.00 USD
Sale Sold out
Shipping calculated at checkout.

What we shipping?

  • Air Handler
  • Condenser (LG Compressor preloaded with R-410A)
  • Certificate of guarantee (Inside the box or with the shipping documentation, If upon receiving the units do not have the guarantee certificate, contact us before 48Hr to send it)

This Central Split System has 40,000 BTU in cooling and heating capacity and 14.3 SEER2 in efficiency. It works with a power supply source of 208~230V/1Ph/60Hz and R410A refrigerant. AHRI and ETL Certified for quality and safety assurance.


Features

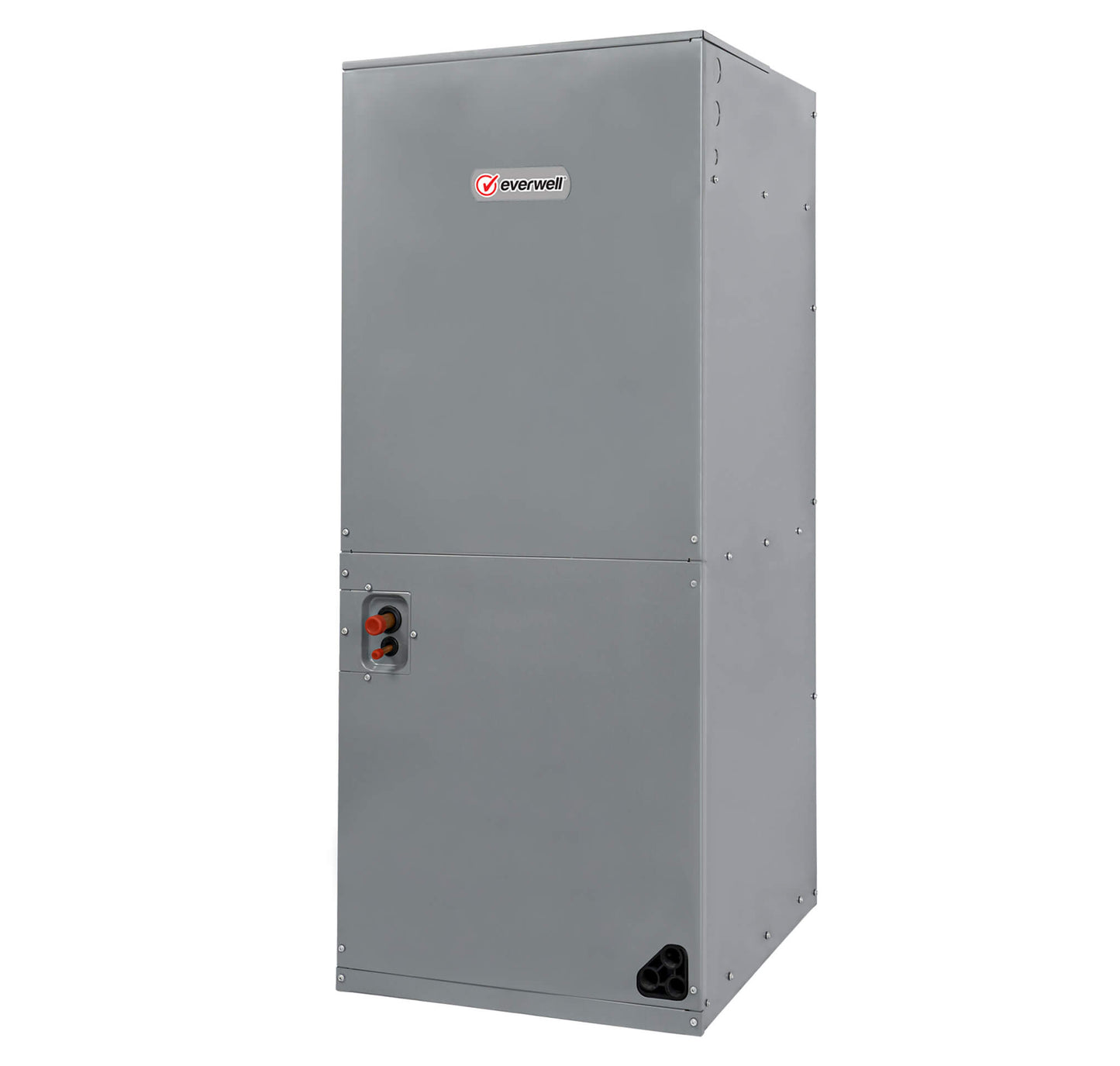

Front Return Air Handler Unit Features:

  • Multi-Speed ECM motor for energy savings
  • Insulated Cabinet – Galvanized steel with paint on all panels. Thermal insulator cover all inside panels to reduce heat and cooling losses and prevent condensed water accumulation
  • Compact wall-mount design enables installation in tight spaces
  • Front or bottom return
  • All copper tube with aluminum fin coil
  • Heat-pump with optional field installed electrical heat kit
  • Thermoplastic drain pan
  • Expansion Devise – Use TXV as expansion device
  • Built in filter rack – Detachable air filter for cleaning or renewal
  • Primary and secondary drain connections to meet FHA requirement

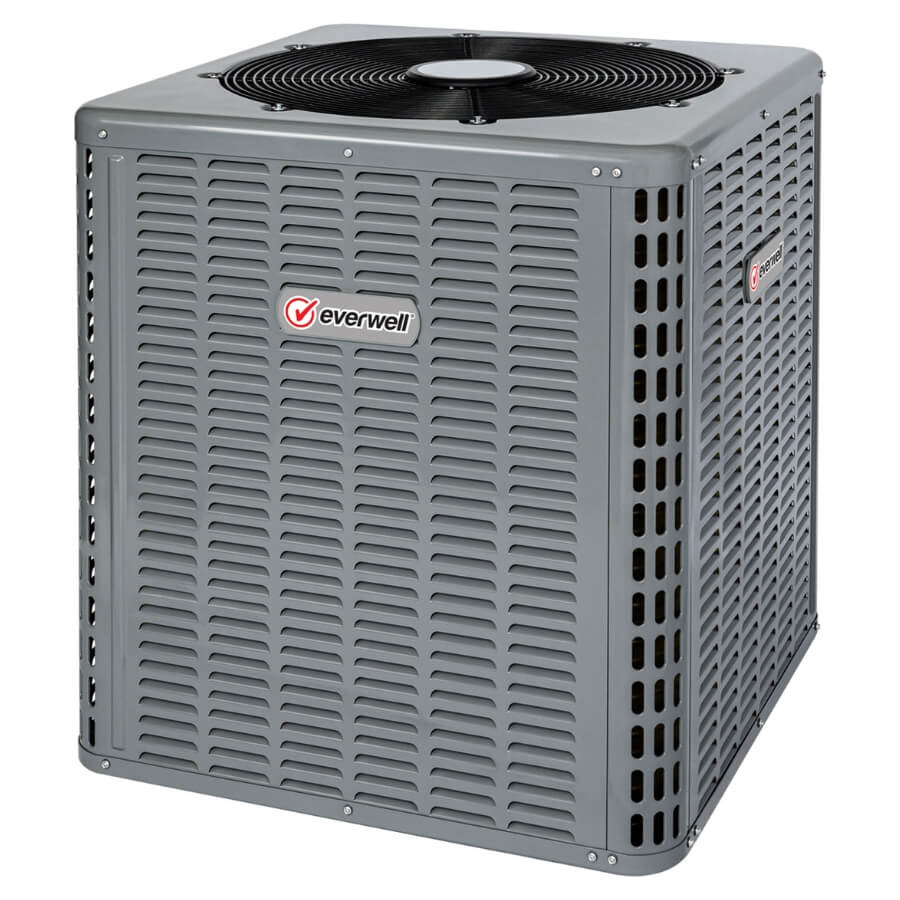

Top-Discharge Condensing Unit Features:

  • Pre Charged with R410a environmentally friendly refrigerant
  • 3.5 ton capacity
  • Scroll compressor with quick reactivity, stronger and stable operation
  • All Copper Coil with Gold Fin: this convenient technology will allow your equipment to have a longer functional life where traditional coil coatings fail; especially in high humidity and salinity environments that promote corrosion
  • Painted galvanized steel cabinet and base pan
  • Ultra-quiet operation. Max. 65 decibels

For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:

CAC – AHC Series
Condensing Unit Air Handler
CAC4213HA15 AHC42HA15


DIMENSIONS CAC4213HA15 AHC42HA15
Net Dimension (W*H*D) 29-1/7 × 25 × 29-1/7 in



740 × 633 × 740 mm

19-2/3 x 45-3/4 x 22 in



500 x 1162 x 560 mm

Packing Dimension (W*H*D) 30-3/10 x 26-1/5 x 30-3/10 in



770 x 665 x 770 mm

22-5/6 x 47-5/8 x 25-3/5 in



580 x 1210 x 650 mm

WEIGHT
Net 207 lb



94 kg

134 lb



61 kg

Packing 218 lb



99 kg

146 lb



66 kg




Condition

New: A brand-new, unused, unopened, undamaged item in its original packaging.

Number of Cool Speeds: 3


Number of Fan Motors: 1

Compressor Type: Rotary


System Configuration: Multi-Positional

Blower Motor Speed: 3

Power Source: Corded Electric


Color: Gray


Number of Compressors: 1


Material: Aluminized Steel


Year Manufactured: 2024


Power Phase: 1 Phase


Brand: Everwell

Tonnage: 3.5

Type: Central Air Conditioner

BTU Cooling Rating: 40,000

Capacity: 3.5


Manufacturer Warranty: 10 Years


Energy Efficiency Ratio (EER): 11.5


Voltage: 208/230 V


Model: CAC4213HA15-AHC42HA15


Features: Fan Only Option, Indoor/Outdoor


SEER2 Rating: 14.3


Mounting Location: Floor, Cabinet, Baseboard


Power: 4055.00

Operation Range: Cooling 64-118 F...Heating 17-80 F

WARRANTY:

Ten (10) years onx parts and compressor if valid warranty registration
  • Register the unit for Limited Warranty within 60 days of installation at everwell-ac.com/warranty
  • If the unit is covered under the Limited Warranty and requires replacement parts, the parts will be provided at no cost, although shipping will need to be covered by the client.
