Everwell® 18000BTU Central Split AC Heat Pump System. ONLY FRONT RETURN AIR HANDLER.

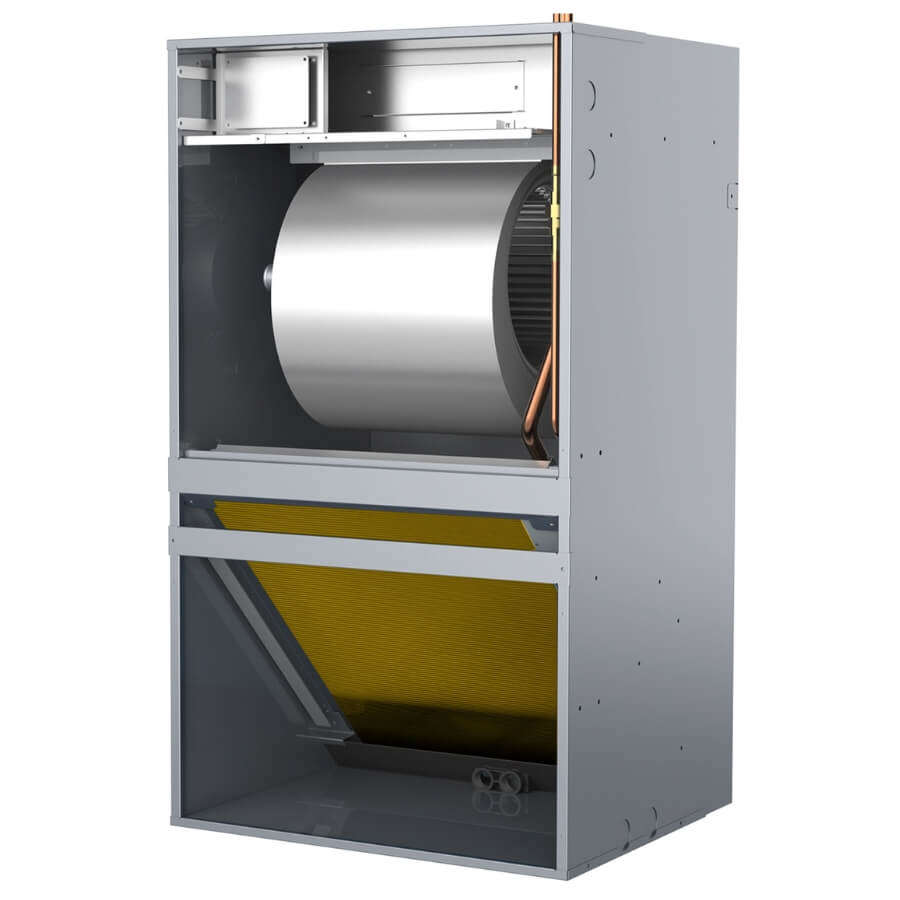

Air Handler (Front Return)

Features:

• Multi-Speed ECM motor for energy savings
• Insulated Cabinet – Galvanized steel with paint on all panels. Thermal insulator cover all inside panels to reduce heat and cooling losses and prevent condensed water accumulation
• Compact wall-mount design enables installation in tight spaces
• Front or bottom return
• All copper tube with aluminum fin coil
• Heat-pump with optional field installed electrical heat kit
• Thermoplastic drain pan
• Expansion Devise – Use TXV as expansion device
• Built in filter rack – Detachable air filter for cleaning or renewal
• Primary and secondary drain connections to meet FHA requirement

For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:

TECHNICAL SPECIFICATIONS

SKU: FAHC18HA15

BTU: 17,500

Ton: 1.46

Power Supply: 208~230V/1Ph/60Hz

Heat Pump: YES

Refrigerant Gas: R410A

Installation Kit: NO

DIMENSIONS

Net Dimension (W*H*D): 20-3/5 x 36 x 15 in

Packing Dimension (W*H*D): 23-1/5 x 39-2/5 x 17-7/10 in

WEIGHT

Net: 88 lb

Packing: 97 lb

WARRANTY

Ten (10) years on parts and compressor if valid warranty registration

• Register the unit for Limited Warranty within 60 days of installation at everwell-ac.com/warranty
• If the unit is covered under the Limited Warranty and requires replacement parts, the parts will be provided at no cost, although shipping will need to be covered by the client.
