Air Handler Unit for Minisplit 18000 BTU High SEER2 Rating 208-230V/1Ph/60Hz

Air Handler Unit for Minisplit 18000 BTU High SEER2 Rating 208-230V/1Ph/60Hz

Regular price $857.00 USD
Regular price Sale price $857.00 USD
Sale Sold out
Shipping calculated at checkout.

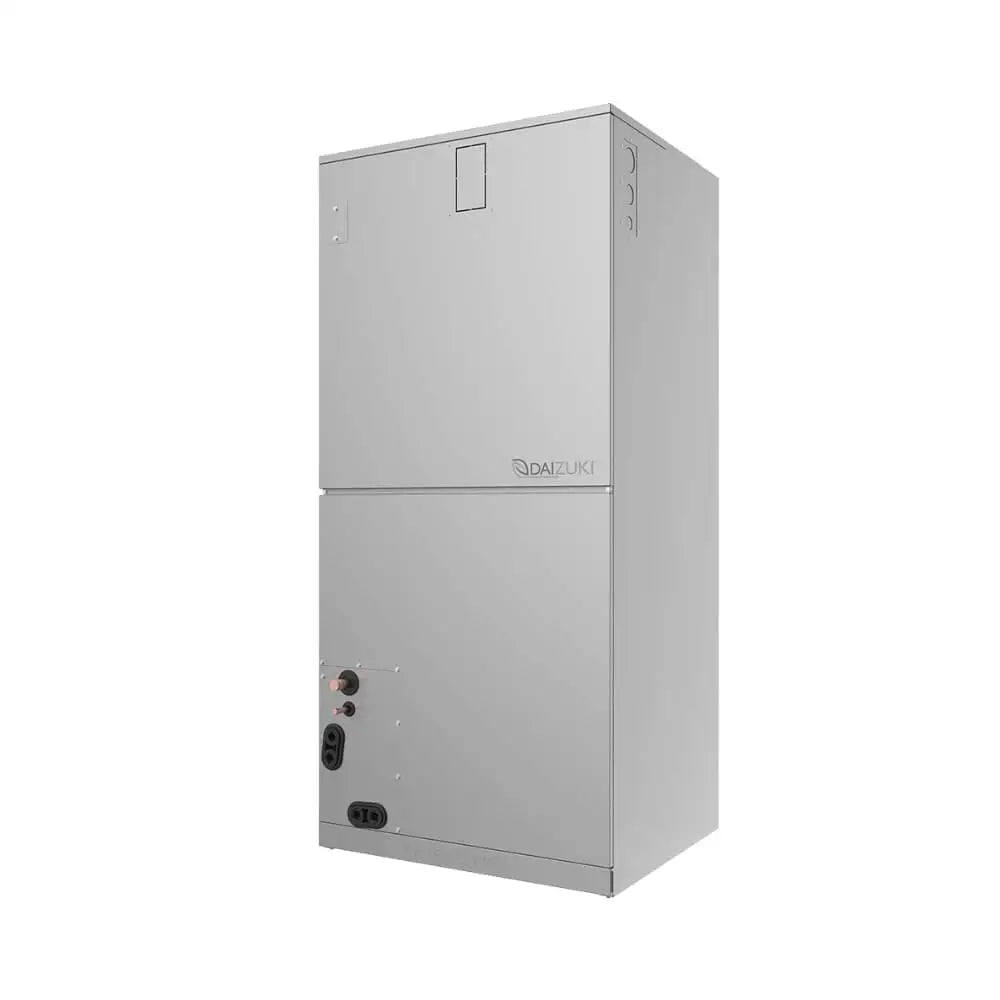

Daizuki® Air Handler Unit 18000 BTU in Capacity



This Multi Zone Air Handler from the DXAH Series features top of the line Full DC Inverter and Heat-Pump technology. It has 18,000 BTU in capacity, high SEER2 rating for high electrical efficiency, and runs on 208-230V/1Ph/60Hz. Plus, it is pre-charged with R410A; a nontoxic, nonflammable refrigerant which does not contribute to ozone depletion.

To assure you of the highest quality standards, this product is AHRI Approved and certified with the ETL Mark. Plus, thanks to its high energy efficiency, it is Energy Star certified. Consult your local laws for energy efficiency rebates and subsidies.

This Multi Zone Indoor Air Handler Model Features:

  • Smart Inverter. Can save energy while reaching the set temperature faster thanks to its advanced Brushless DC Motor technology.
  • Smart Troubleshooting. There is no time for downtime with Refrigerant Leak Detection and Easy Pull-Out Blower Wheel Housing For Maintenance.
  • Flexible installation. Allows 4-way multi position installation with vertical up flow or downflow, horizontal left or horizontal right.
  • Operating features include Anti-Cold Air Function, Auto Restart.
  • Compatible With Most 24V Wired Thermostats.
  • Optional Auxiliary Electric Heat Kit Available In 5kw, 10kw, 15kw
TECHNICAL SPECIFICATIONS
Power Supply 208~230V/1Ph/60Hz
Heat Pump Yes
Cooling BTU 18000
Heating at 47°F BTU 18000
Thermostat Type – Wireless Remote Controller  –
Thermostat Type – Wired/Programmable Control, Wifi  –
Temperature Operation Range – Cooling (°F) 60~90
Temperature Operation Range – Heating (°F) 32~86
Ambient Temperature – Cooling (°F) -13~122
Ambient Temperature – Heating (°F) -13~75
Outdoor SKU DXAH18E426-21
DIMENSIONS

Net Dimension (W*H*D) 21 x 17-1/2 x 45 in

533 x 445 x 1143 mm

Packing Dimension (W*H*D) 25.20 x 20.87 x 50.39 in

640 x 530 x 1280  mm

WEIGHT

Net 105.82 lb

48 kg

Packing 129.41 lb

57 kg

Warranty

Thank you for choosing DAIZUKI to conditioning your room. We want to let you know that you installed a high technology equipment made under strictly quality control standards, that’s why DAIZUKI offer a warranty of 10 years for the Compressor and 10 years in Parts.

Warranty Policy:

Clic here:

Product Registration:

Clic here:
