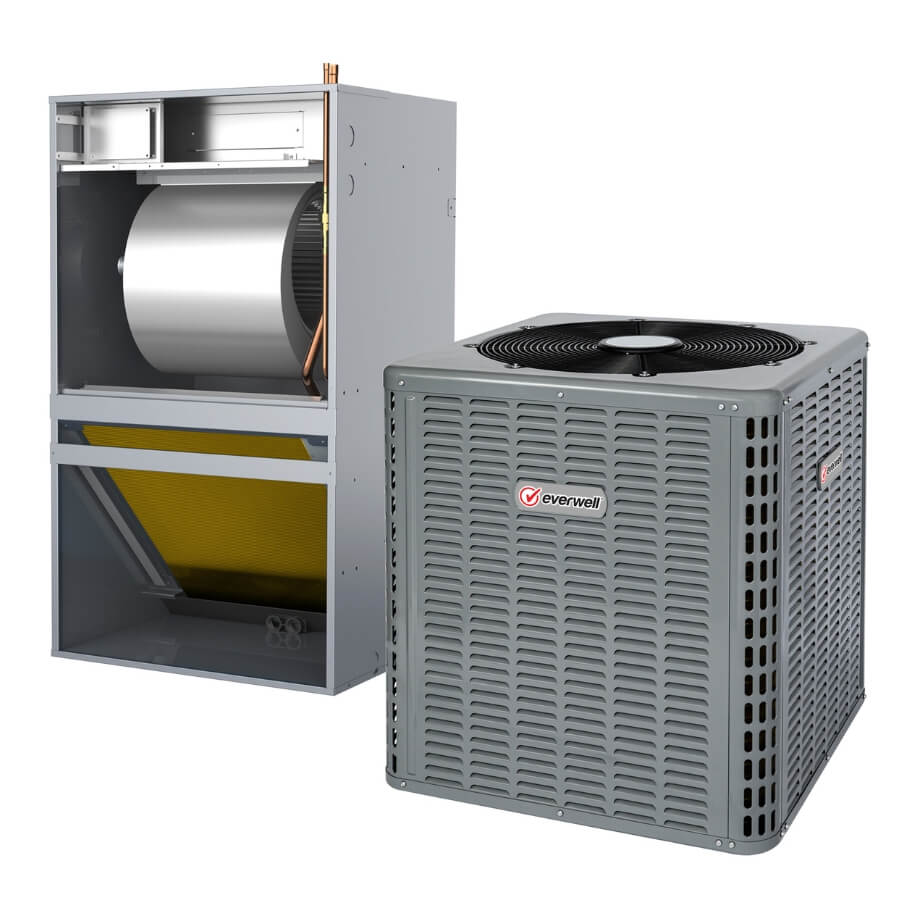

30,000 BTU 15 SEER2 Ducted Central Air Conditioner Heat Pump Split System + Front Return Air Handler

What we shipping?

• Air Handler (Front Return).
• Condenser (LG Compressor preloaded with R-410A).
• Certificate of guarantee (Inside the box or with the shipping documentation, If upon receiving the units do not have the guarantee certificate, contact us before 48Hr to send it)

This Central Split System has 30,000 BTU (2.5 Ton) in cooling and heating capacity and 15 SEER2 in efficiency. It works with a power supply soure of 208~230V /1Ph/60Hz and R410A refrigerant. AHRI and ETL Certified for quality and safety assurance.

Features

Front Return Air Handler Unit Features:

• Multi-Speed ECM motor for energy savings.
• Insulated Cabinet – Galvanized steel with paint on all panels. Thermal insulator cover all inside panels to reduce heat and cooling losses and prevent condensed water accumulation.
• Compact wall-mount design enables installation in tight spaces.
• Front or bottom return.
• All copper tube with aluminum fin coil.
• Heat-pump with optional field installed electrical heat kit.
• Thermoplastic drain pan.
• Expansion Devise – Use TXV as expansion device.
• Built in filter rack – Detachable air filter for cleaning or renewal.
• Primary and secondary drain connections to meet FHA requirement.

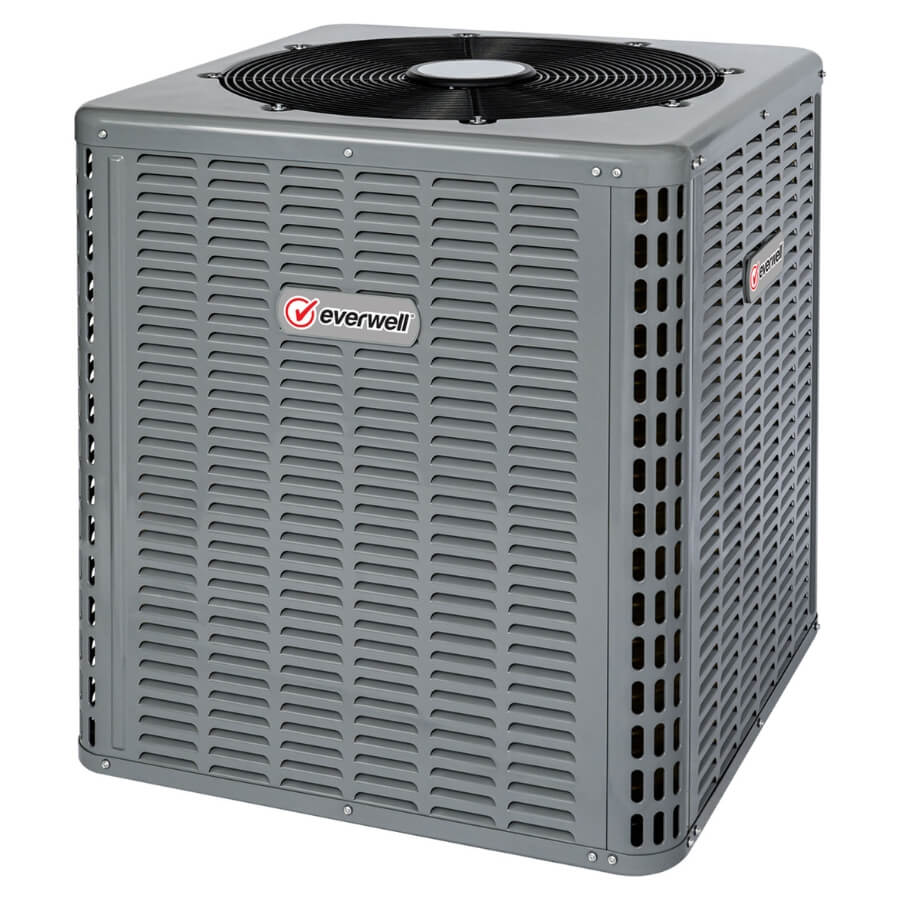

Top-Discharge Condensing Unit Features:

• Pre Charged with R410a environmentally friendly refrigerant.
• 2.33 ton capacity.
• Scroll compressor with quick reactivity, stronger and stable operation.
• All Copper Coil with Gold Fin: this convenient technology will allow your equipment to have a longer functional life where traditional coil coatings fail; especially in high humidity and salinity environments that promote corrosion
• Painted galvanized steel cabinet and base pan.
• Ultra-quiet operation. Max. 65 decibels.

For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:

Technical Specifications

DIMENSIONS

WEIGHT

WARRANTY

• Ten (10) years on parts and compressor if valid warranty registration
  Register the unit for Limited Warranty within 60 days of installation at everwell-ac.com/warranty.
• If the unit is covered under the Limited Warranty and requires replacement parts, the parts will be provided at no cost, although shipping will need to be covered by the client.
