SKU: 25-3X370
Precio habitual
$5.00 USD
Precio habitual
Precio de oferta
$5.00 USD
Precio unitario
/
por
Oferta
Agotado
Size
25+3µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
25+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
30+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
35+3µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
35+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
40+3µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
40+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
45+3µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
45+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
50+3µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
50+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
55+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
60+5µF 370V – Dual Round Run CapacitorVariante agotada o no disponible
5µF 370V – Round Run CapacitorVariante agotada o no disponible
7.5µF 370V – Round Run CapacitorVariante agotada o no disponible
10µF 370V – Round Run CapacitorVariante agotada o no disponible
12.5µF 370V – Round Run CapacitorVariante agotada o no disponible
15µF 370V – Round Run CapacitorVariante agotada o no disponible
17.5µF 370V – Round Run CapacitorVariante agotada o no disponible
20µF 370V – Round Run CapacitorVariante agotada o no disponible
25µF 370V – Round Run CapacitorVariante agotada o no disponible
30µF 370V – Round Run CapacitorVariante agotada o no disponible
35µF 370V – Round Run CapacitorVariante agotada o no disponible
40µF 370V – Round Run CapacitorVariante agotada o no disponible
45µF 370V – Round Run CapacitorVariante agotada o no disponible
50µF 370V – Round Run CapacitorVariante agotada o no disponible
55µF 370V – Round Run CapacitorVariante agotada o no disponible
60µF 370V – Round Run CapacitorVariante agotada o no disponible
70µF 370V – Round Run CapacitorVariante agotada o no disponible
80µF 370V – Round Run CapacitorVariante agotada o no disponible
No se pudo cargar la disponibilidad de retiro
Actualizar
High-Quality HVAC Motor Capacitors for Fan and Compressor Applications
Restore and maintain your air conditioning and HVAC system performance with trusted Everwell capacitors. Choose from single run or dual run models, all designed for reliability, durability, and easy installation.
Available Models:
Single Run (2-terminal):
3µF, 5µF, 7.5µF, 10µF, 12.5µF, 15µF, 17.5µF, 20µF, 25µF, 30µF, 35µF, 40µF, 45µF, 50µF, 55µF, 60µF, 70µF, 80µF
Dual Run (3-terminal – C/FAN/HERM):
Common Applications:
Air conditioner condenser fan motors
AC compressor units
Blower motors
HVAC fan coils
Residential and light commercial systems
Features:
All models are 370V AC rated
No induction winding structure of metallic polypropylene membrane
Credible insulation performance, super electric performance with ability of self-heating and safety explosion proof equipment
Excellent heat dispersion, small volume, wide range of capacity, low loss stable capacitance
With stand impact current, strong overload performance and long live span
Suitable for starting and operating 50Hz or 60Hz AC single phase electro-motor
UL Listed – E477014
Main Technical Parameters:
Working Temperature: -13 to 158ºF (-25 to 70ºC)
Capacitance Tolerance: J:±5% K:±10%.
Non-PCB capacitor
Expected life 60,000 hours

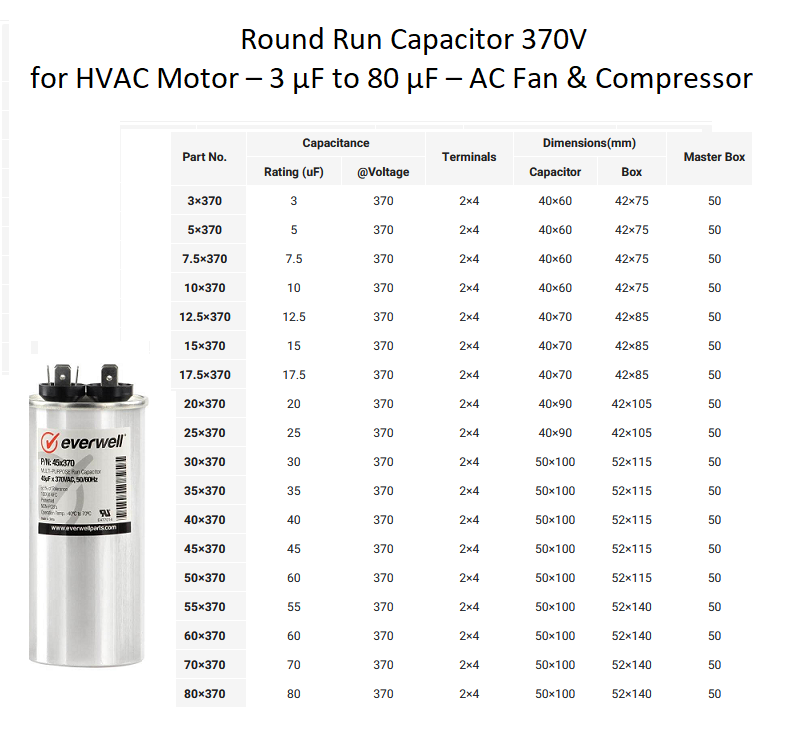

ROUND RUN CAPACITOR 370V
Part No.
Capacitance
Terminals
Dimensions(mm)
Master Box
Rating (uF)
@Voltage
Capacitor
Box
3×370
3
370
2×4
40×60
42×75
50
5×370
5
370
2×4
40×60
42×75
50
7.5×370
7.5
370
2×4
40×60
42×75
50
10×370
10
370
2×4
40×60
42×75
50
12.5×370
12.5
370
2×4
40×70
42×85
50
15×370
15
370
2×4
40×70
42×85
50
17.5×370
17.5
370
2×4
40×70
42×85
50
20×370
20
370
2×4
40×90
42×105
50
25×370
25
370
2×4
40×90
42×105
50
30×370
30
370
2×4
50×100
52×115
50
35×370
35
370
2×4
50×100
52×115
50
40×370
40
370
2×4
50×100
52×115
50
45×370
45
370
2×4
50×100
52×115
50
50×370
60
370
2×4
50×100
52×115
50
55×370
55
370
2×4
50×100
52×140
50
60×370
60
370
2×4
50×100
52×140
50
70×370
70
370
2×4
50×100
52×140
50
80×370
80
370
2×4
50×100
52×140
50

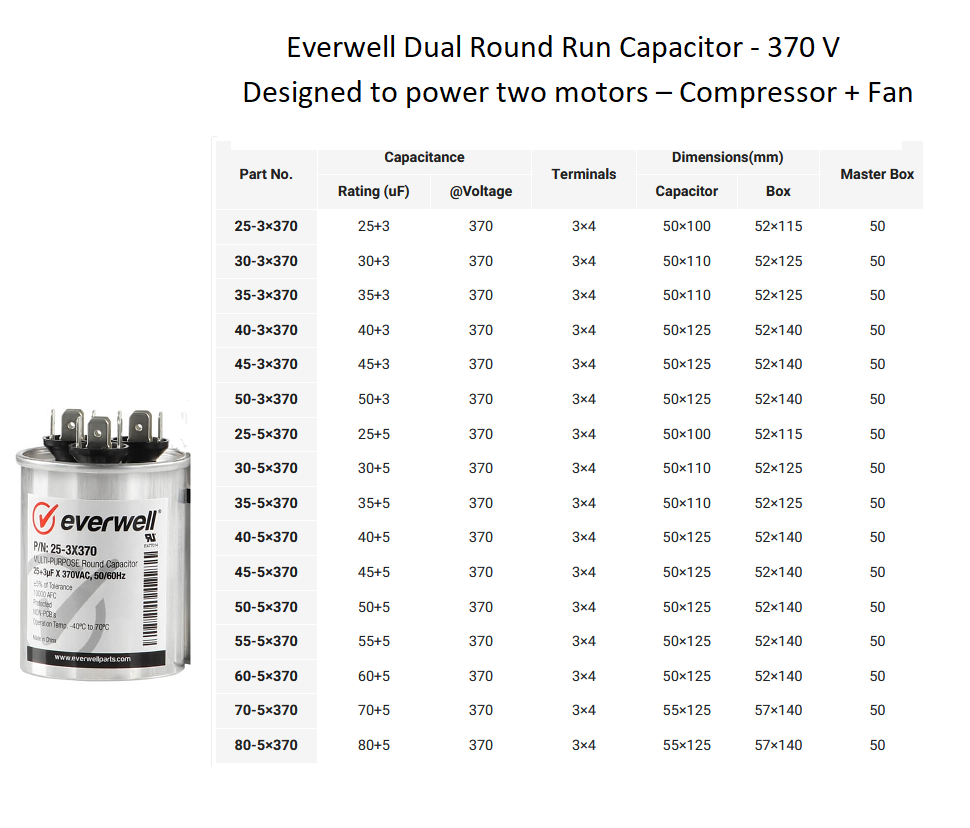

DUAL ROUND RUN CAPACITOR 370V
Part No.
Capacitance
Terminals
Dimensions(mm)
Master Box
Rating (uF)
@Voltage
Capacitor
Box
25-3×370
25+3
370
3×4
50×100
52×115
50
30-3×370
30+3
370
3×4
50×110
52×125
50
35-3×370
35+3
370
3×4
50×110
52×125
50
40-3×370
40+3
370
3×4
50×125
52×140
50
45-3×370
45+3
370
3×4
50×125
52×140
50
50-3×370
50+3
370
3×4
50×125
52×140
50
25-5×370
25+5
370
3×4
50×100
52×115
50
30-5×370
30+5
370
3×4
50×110
52×125
50
35-5×370
35+5
370
3×4
50×110
52×125
50
40-5×370
40+5
370
3×4
50×125
52×140
50
45-5×370
45+5
370
3×4
50×125
52×140
50
50-5×370
50+5
370
3×4
50×125
52×140
50
55-5×370
55+5
370
3×4
50×125
52×140
50
60-5×370
60+5
370
3×4
50×125
52×140
50
70-5×370
70+5
370
3×4
55×125
57×140
50
80-5×370
80+5
370
3×4
55×125
57×140
50
Ver todos los detalles
