Everwell PC Board Kit for Mini Split System
Everwell PC Board Kit for Mini Split System
Couldn't load pickup availability

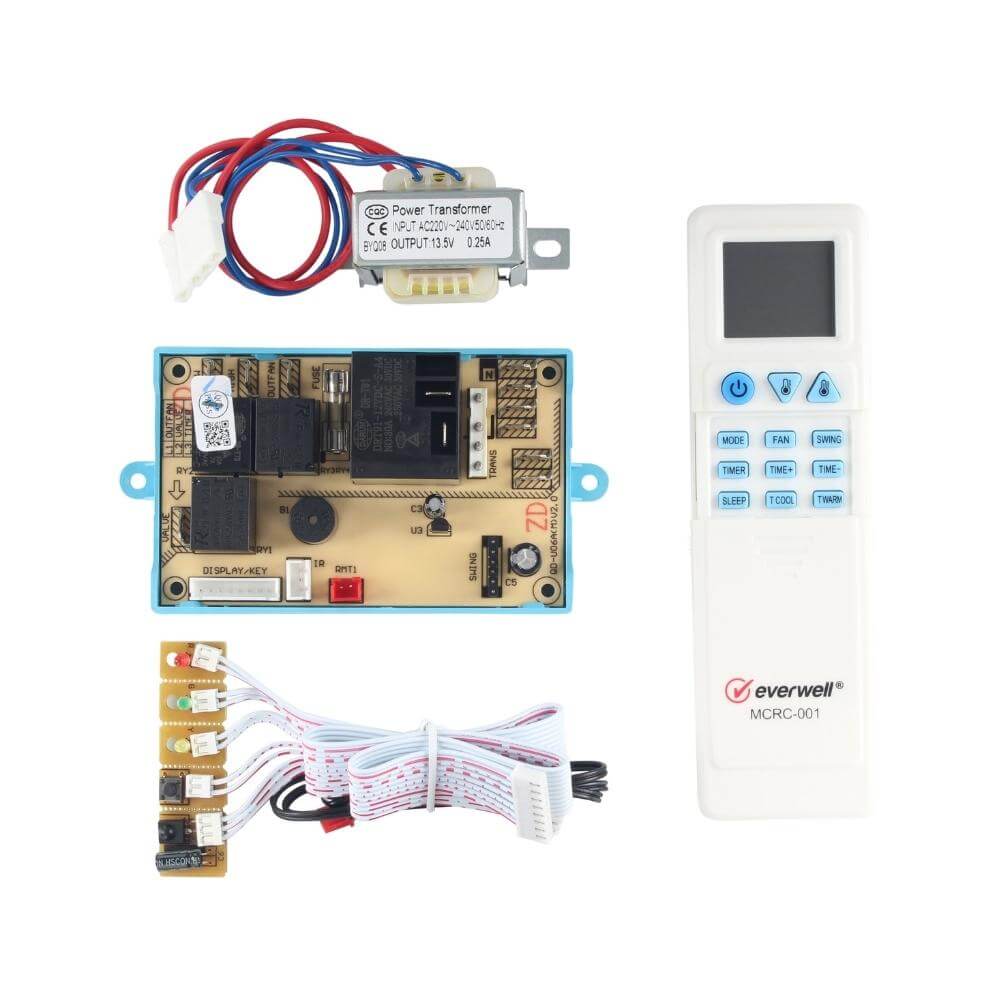

Everwell MCRC-001-PC Board Kit for On/Off Mini Split System
The Everwell MCRC-001-PC Board Kit provides precise control and reliable operation for On/Off mini split air conditioners. Ideal for replacements and upgrades of ductless systems.
Key Features
- Temperature control and time control
- 3 fan speeds
- Heat/Cool control
- Swing function
- Forced emergency start
- Delay compressor for protection
- Power Input: 220-240V, 50/60Hz
- Auto Restart
Technical Specifications
Feature | Details |
---|---|
Part Number | MCRC-001 |
Type | On/Off mini split control system |
Voltage | 220-240V, 50/60Hz |
Fan Speeds | 3 (Low, Medium, High) |
Applications | Mini split air conditioner replacements and repairs |

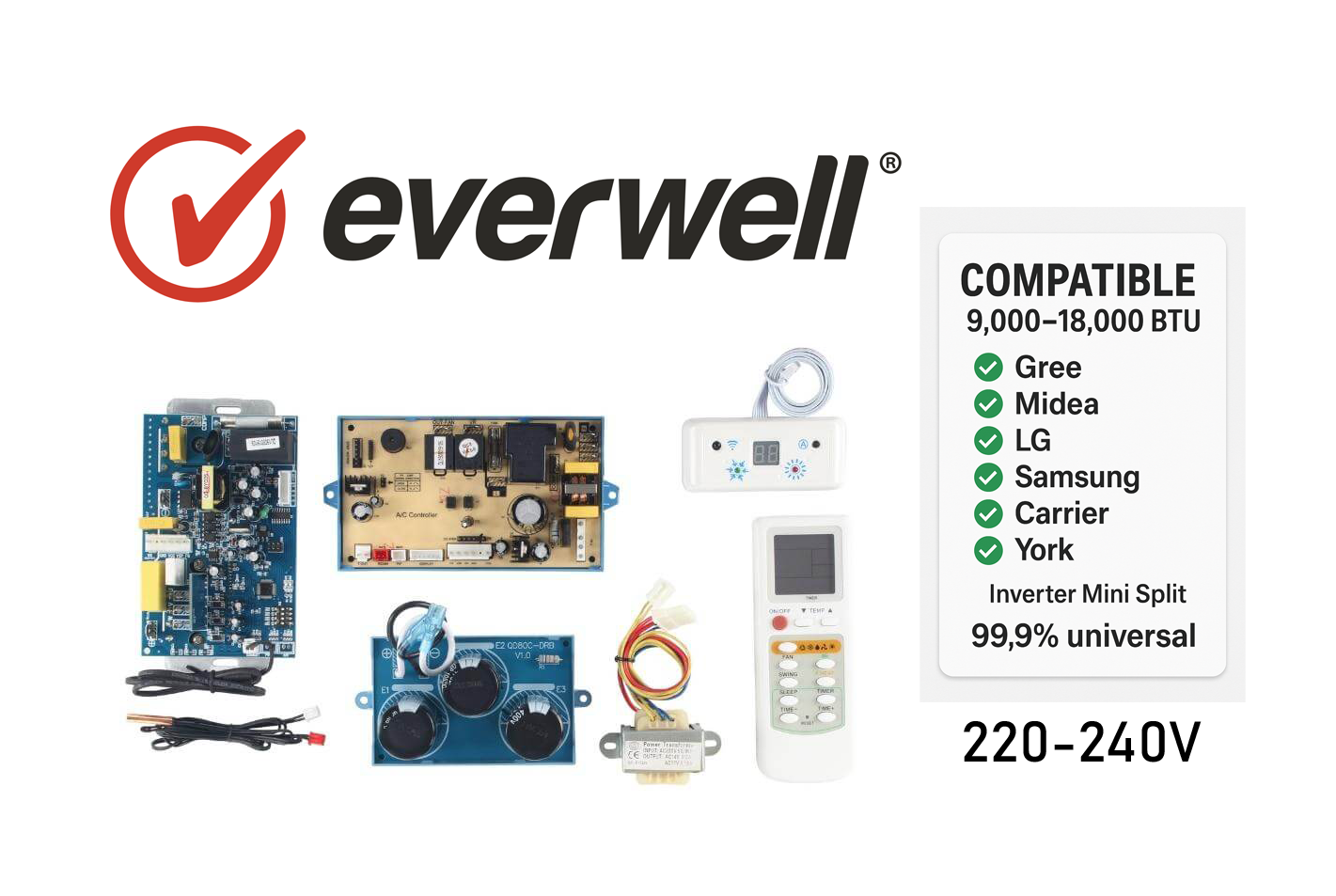

Everwell MCRC-002 Universal PC Board Kit for Inverter Mini Split Systems 220-240V
Upgrade or repair your ductless mini split air conditioner with the Everwell MCRC-002 Universal PC Board Kit, compatible with most inverter systems up to 18,000 BTU. Reliable, versatile, and perfect for technicians and HVAC professionals.
Key Features
- Universal Compatibility: Works with most inverter mini split systems (up to 18,000 BTU) using 220-240V, 50/60Hz power input.
- DC Inverter Support: Drives DC compressors, indoor DC fan motors, and electronic expansion valves for efficient performance.
- AC/DC Fan Motor Compatibility: Supports both DC and AC outdoor fan motors.
- Complete System Control: Full temperature (16°C–30°C) and time control with 3 fan speeds and multiple operation modes.
- Temperature Sensor Support: Compatible with exhaust sensors to protect the compressor (shuts down above 110ºC).
- Advanced Protection: 3-minute compressor startup delay for durability.
- Advanced Remote Control Functions: ON/OFF, TEMP, MODE, FAN, 26°C & 20°C buttons, SWING, SLEEP, TIMER, TIME+/TIME-, RESET.
Technical Specifications
Feature | Details |
---|---|
Part Number | MCRC-002 |
Type | Universal control system for DC inverter split air conditioners |
Voltage | 220-240V, 50/60Hz |
BTU Capacity | Up to 18,000 BTU |
Fan Speeds | 3 (Low, Medium, High) |
Applications | Mini split air conditioner replacements and repairs |
Warning | Contains chemicals known to the State of California to cause cancer and reproductive harm (www.P65Warnings.ca.gov) |
Installation Notes
- Professional Installation Required: Must be installed by certified HVAC technicians.
- Electronic Expansion Valve: Ensure correct installation to prevent system issues.
- Heat Dissipation: Stabilize heat sink with silicone grease and secure with screws.
- Compressor Connection: Connect U, V, W cables correctly.
- Testing: Perform power-on test; solid green LED = DC inverter, flashing green LED = AC inverter.
Package Contents

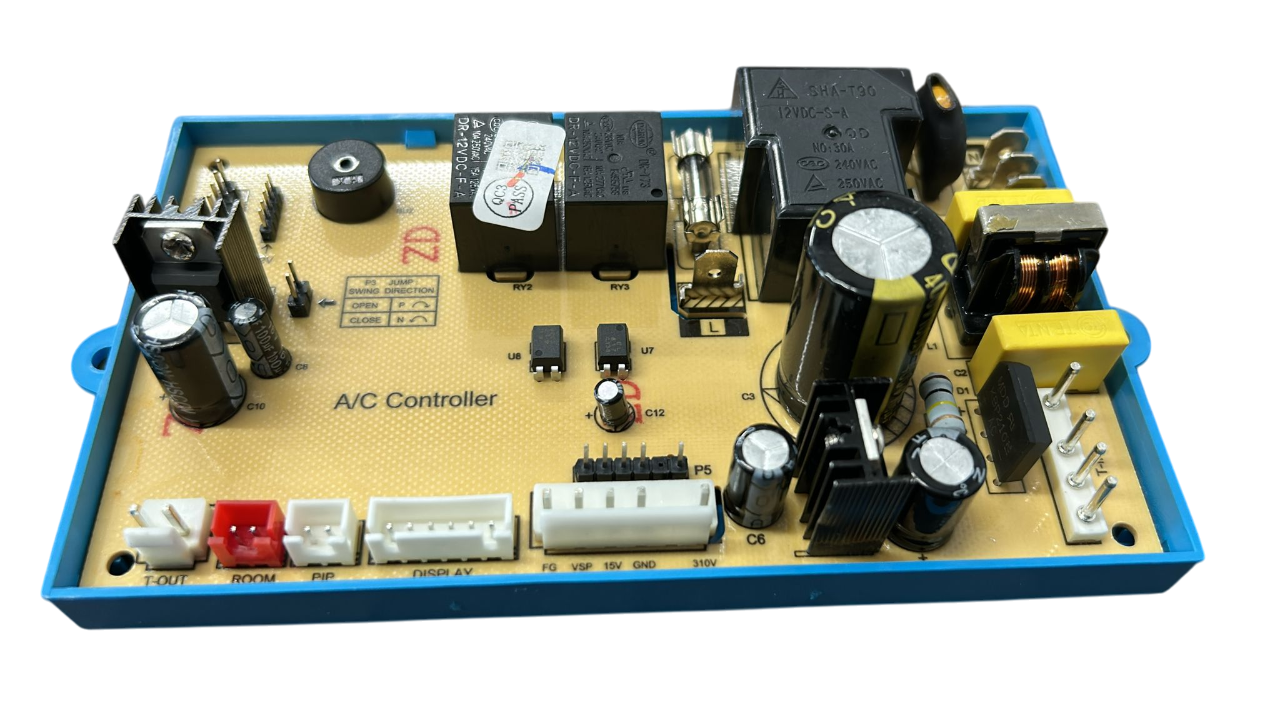

- 1 x Universal Indoor Board
- 2 x Indoor Unit Sensor
- 1 x Universal Outdoor Inverter Board

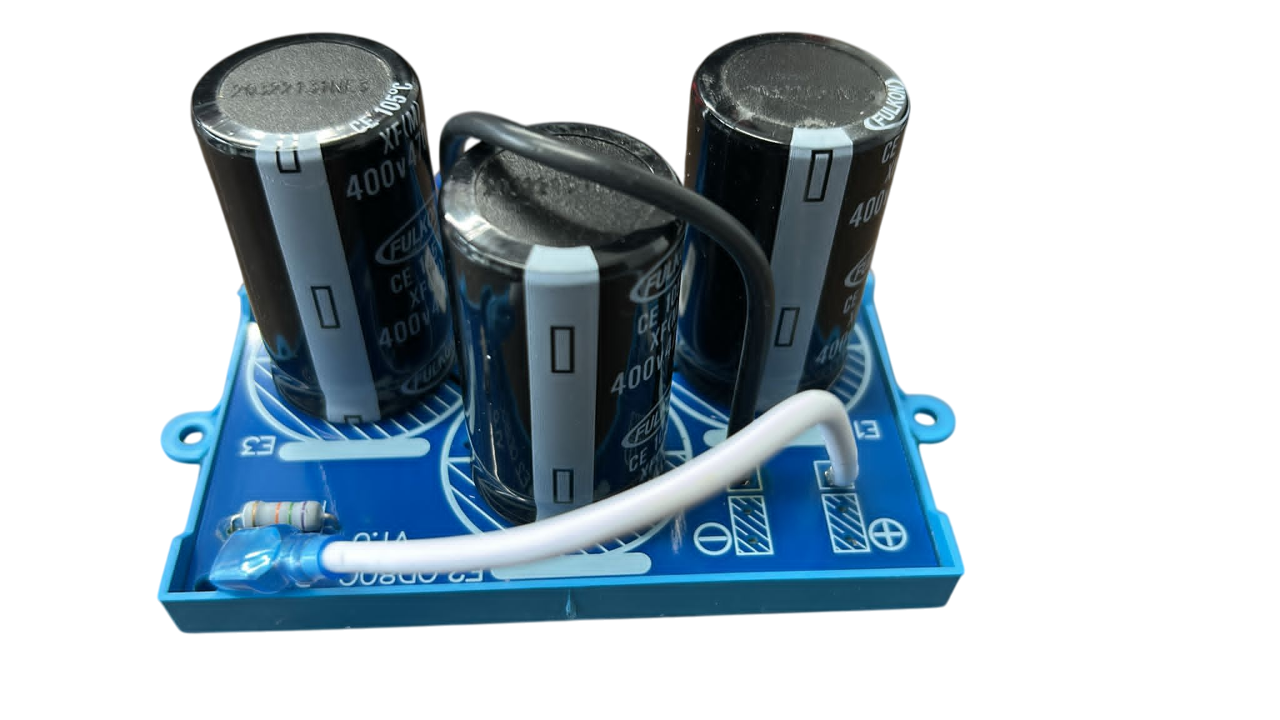

- 1 x Electrolytic Capacitor Board
- 1 x Remote Control
- 1 x Instruction Manual
Important Notes
- Not compatible with non-inverter air conditioning units.
- Indoor fan motors must be replaced with Everwell-compatible models if not DC-based.
- Warranty does not cover damages due to incorrect installation or human error.
Restore your mini split system to peak performance with Everwell MCRC-001 or MCRC-002 PC Board Kits. Order now and enjoy reliable cooling and heating!
Disclaimer: Always follow the included manual for installation. Improper installation may void the warranty.
