The Cooling Corner LLC

SKU:CAC1813HA15 | AHC18HA15

Everwell® 1.5 TON 14.3 SEER2 Ducted Central Split Air Conditioner Heat Pump System

Everwell® 1.5 TON 14.3 SEER2 Ducted Central Split Air Conditioner Heat Pump System

Regular price $1,850.00 USD
Regular price $180.00 USD Sale price $1,850.00 USD
Sale Sold out
Shipping calculated at checkout.

This Central Split System has 17,500 BTU in cooling and heating capacity and 14.3 SEER2 in efficiency. It works with a power supply source of 208~230V/1Ph/60Hz and R410A refrigerant. AHRI and ETL Certified for quality and safety assurance.

Air Handler Unit Features:

  • Multi-Speed ECM motor for energy savings
  • Insulated Cabinet – Galvanized steel with paint on all panels. Thermal insulator cover all inside panels to reduce heat and cooling losses and prevent condensed water accumulation
  • Compact wall-mount design enables installation in tight spaces
  • Front or bottom return
  • All copper tube with aluminum fin coil
  • Heat-pump with optional field installed electrical heat kit
  • Thermoplastic drain pan
  • Expansion Devise – Use TXV as expansion device
  • Built in filter rack – Detachable air filter for cleaning or renewal
  • Primary and secondary drain connections to meet FHA requirement

Top-Discharge Condensing Unit Features:

  • Pre Charged with R410a environmentally friendly refrigerant
  • 1.46 ton capacity
  • Scroll compressor with quick reactivity, stronger and stable operation
  • All Copper Coil with Gold Fin: this convenient technology will allow your equipment to have a longer functional life where traditional coil coatings fail; especially in high humidity and salinity environments that promote corrosion
  • Painted galvanized steel cabinet and base pan
  • Ultra-quiet operation. Max. 65 decibels

For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:

CAC – AHC Series
Condensing Unit Air Handler
CAC1813HA15 AHC18HA15



DIMENSIONS CAC1813HA15 AHC18HA15
Net Dimension (W*H*D) 23-3/5 x 25 x 23-3/5 in



600 x 633 x 600 mm

19-2/3 x 45-3/4 x 22 in



500 x 1162 x 560 mm

Packing Dimension (W*H*D) 24-4/5 x 26-1/5 x 24-4/5 in



630 x 665 x 630 mm

22-5/6 x 47-5/8 x 25-3/5 in



580 x 1210 x 650 mm

WEIGHT
Net 127 lb



57.5 kg

126 lb



57 kg

Packing 132 lb



60 kg

137 lb



62 kg



TECHNICAL SPECIFICATIONS
Condensing Unit Air Handler
SKU CAC1813HA15 AHC18HA15
BTU 17,500 17,500
Ton 1.46 1.46
Power Supply
208~230V/1Ph/60Hz
208~230V/1Ph/60Hz

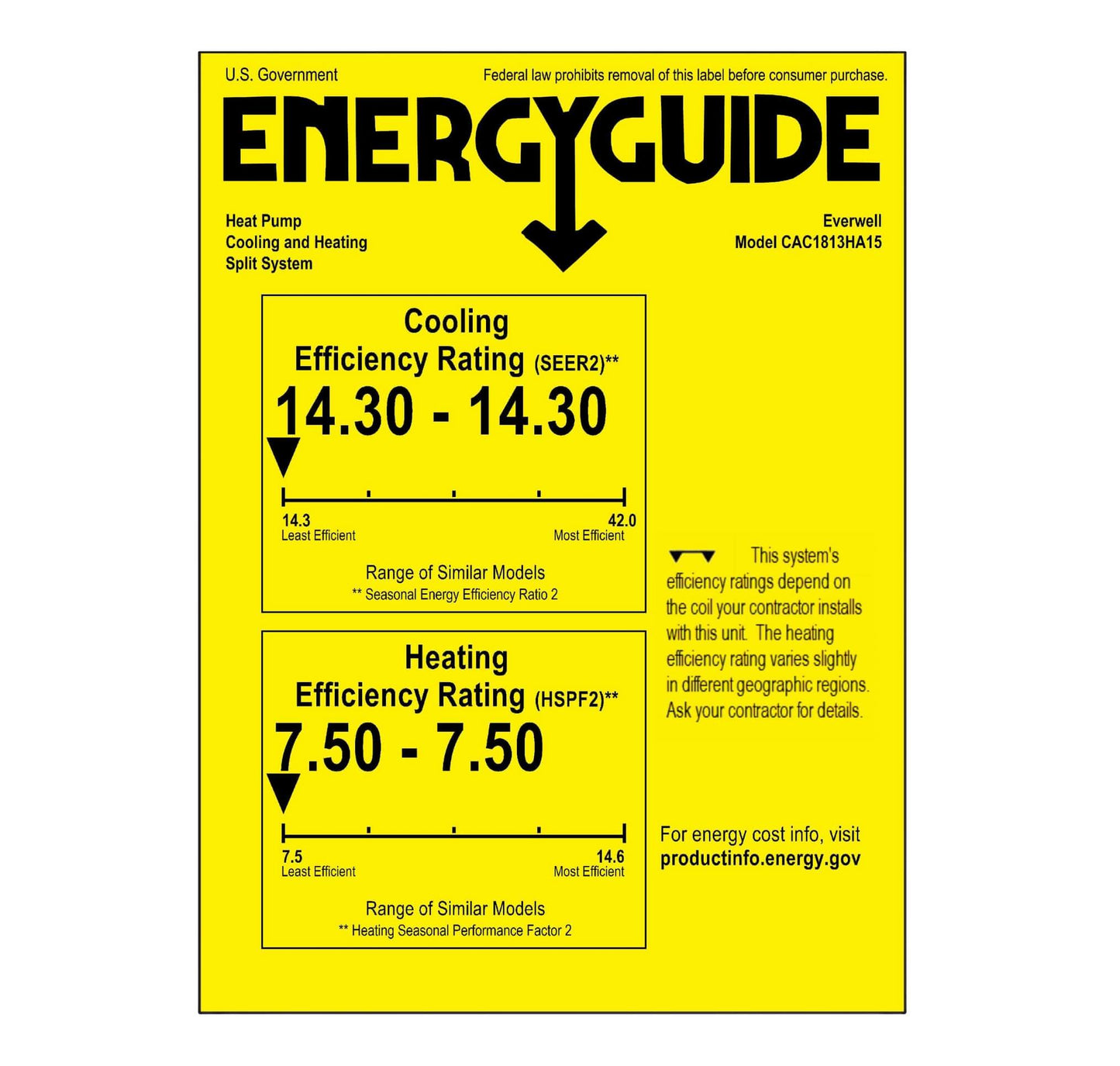

SEER 14.3 14.3
Heat Pump Yes Yes
Refrigerant Gas R410A R410A
Compressor Brand LG
Compressor Type Scroll
Installation Kit No No



WARRANTY

Ten (10) years on parts and compressor if valid warranty registration

  • Register the unit for Limited Warranty within 60 days of installation at everwell-ac.com/warranty
  • If the unit is covered under the Limited Warranty and requires replacement parts, the parts will be provided at no cost, although shipping will need to be covered by the client.
